FAG B7200-C-2RSD-T-P4S-UL

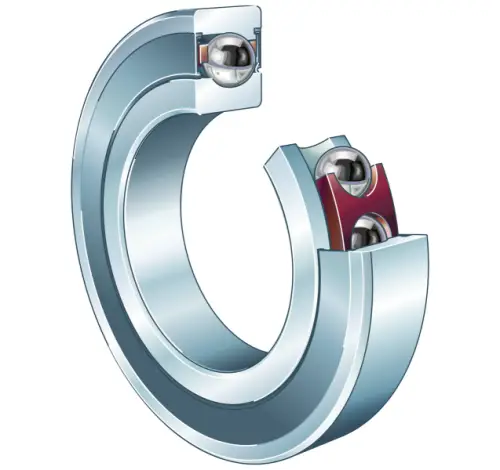

Radial Super Precision Bearings
Spindle bearing B72..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

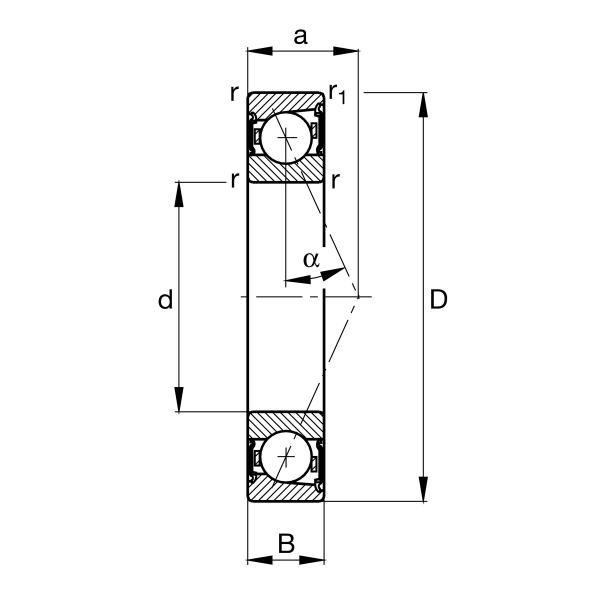

Main Dimensions & Performance Data
d
10 mm
Bore diameter
D
30 mm
Outside diameter
B
9 mm
Width
Cr
6,900 N
Basic dynamic load rating, radial
C0r
2,950 N
Basic static load rating, radial
Cur
315 N
Fatigue load limit, radial
nG Grease
56,000 1/min
Limiting speed for grease lubrication
≈m
30 g
Weight

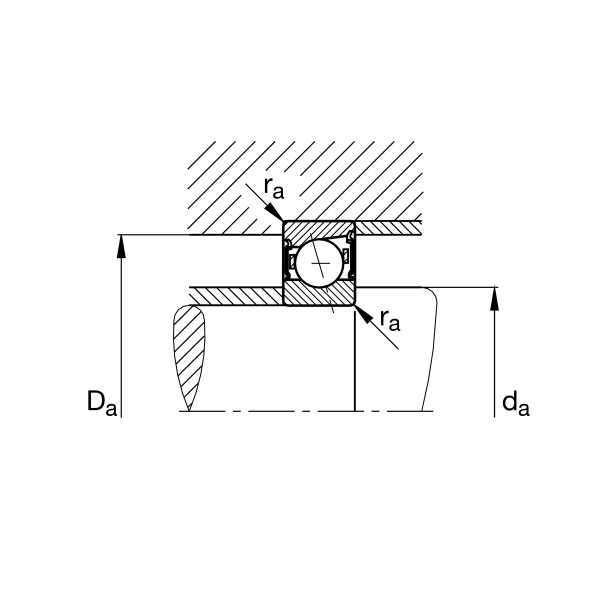

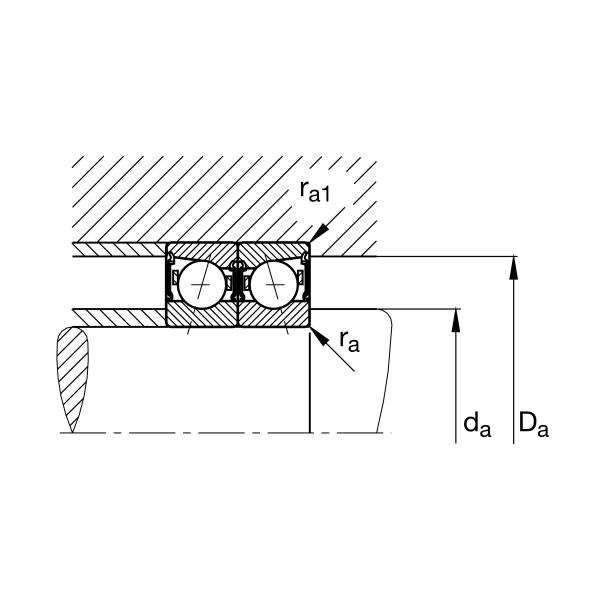

Mounting dimensions
da
14.5 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
25.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.3 mm
Maximum recess radius
a
7.2 mm
Distance between the apexes of the pressure cones
