FAG B7201-C-T-P4S-UL
Radial Super Precision Bearings

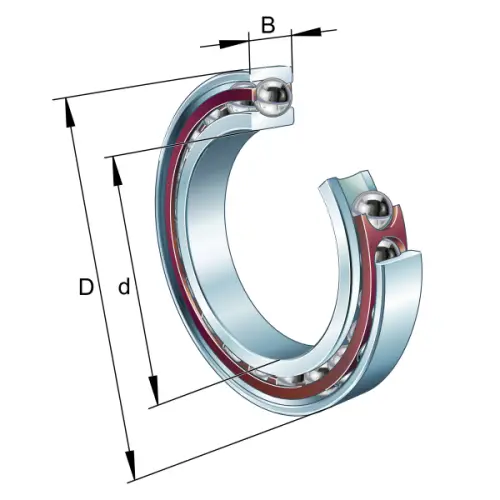

Spindle bearing B72..-C, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

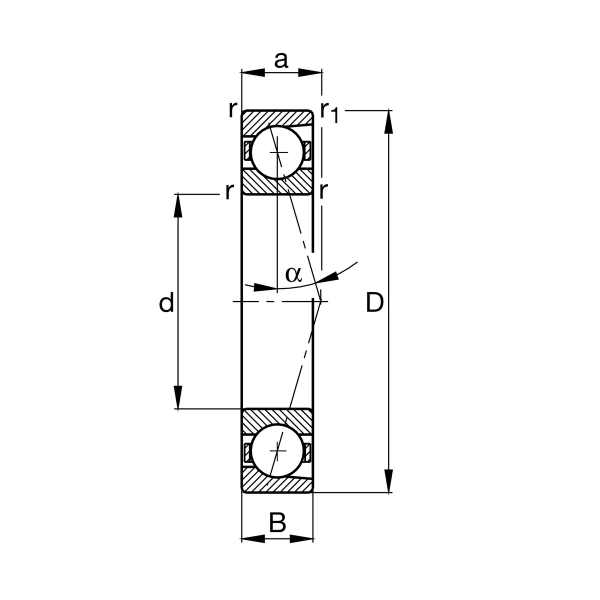

Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
32 mm
Outside diameter
B
10 mm
Width
Cr
9,100 N
Basic dynamic load rating, radial
C0r
3,900 N
Basic static load rating, radial
Cur
410 N
Fatigue load limit, radial
nG Grease
50,000 1/min
Limiting speed for grease lubrication
nG Oil
75,000 1/min
Limiting speed for oil lubrication
≈m
0.04 kg
Weight

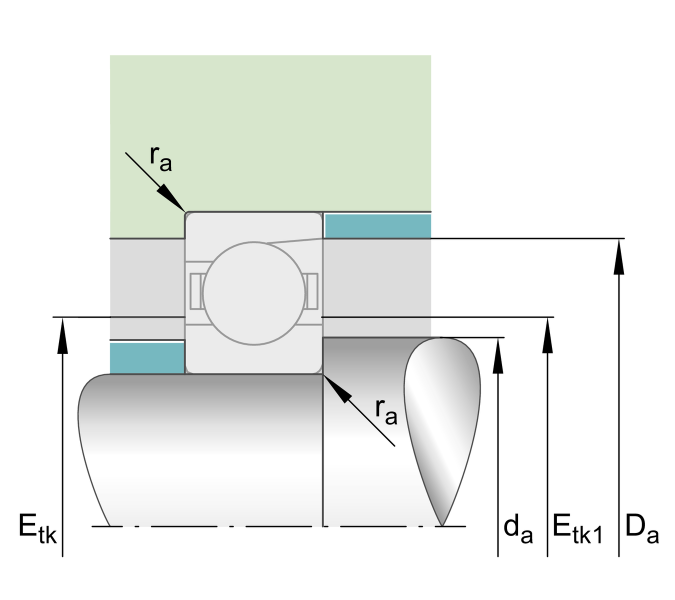

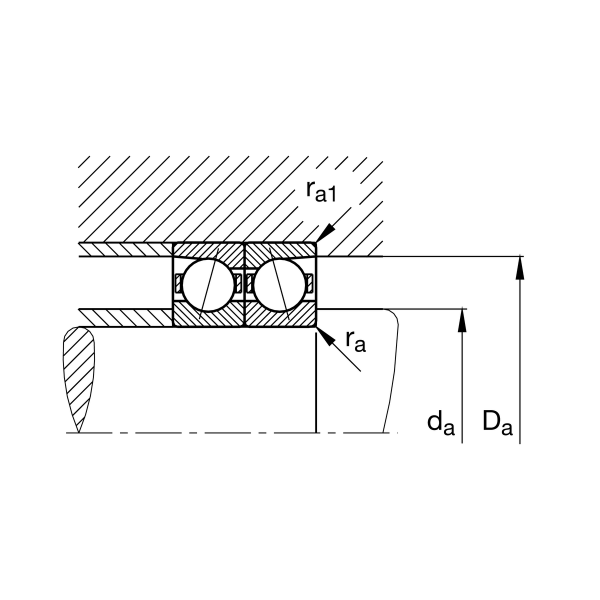

Mounting dimensions
da
16.5 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
27.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.3 mm
Maximum recess radius
Etk min
19.6 mm
Minimum diameter injection pitch
Etk max
21.1 mm
Maximum diameter injection pitch
Etk1 min
19.6 mm
Minimum diameter injection pitch
Etk1 max
21.1 mm
Maximum diameter injection pitch
a
8 mm
Distance between the apexes of the pressure cones
