FAG HC7022-EDLR-T-P4S-UL
Radial Super Precision Bearings
High speed spindle bearing HC70..-EDLR, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, with ceramic balls, restricted tolerances, for direct oil feed via outer ring, with inserted O rings
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

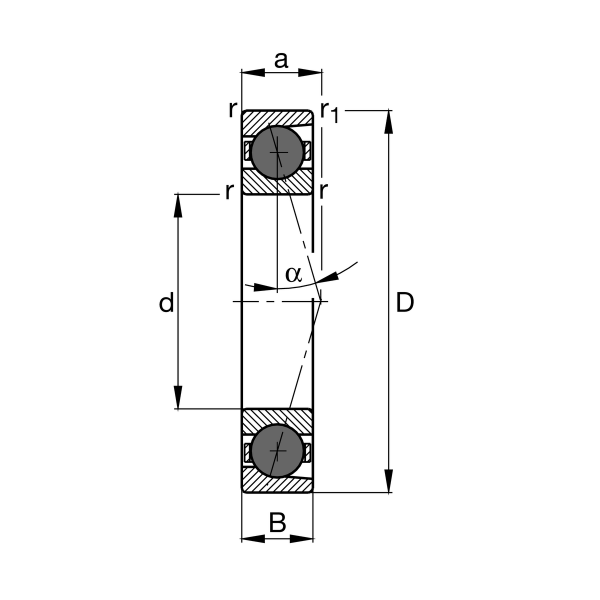

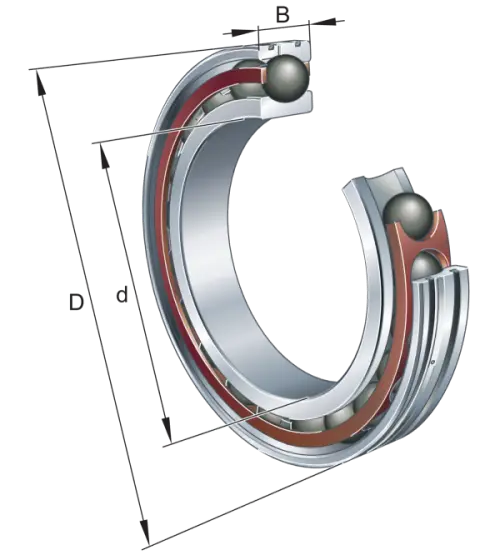

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
170 mm
Outside diameter
B
28 mm
Width
Cr
45,500 N
Basic dynamic load rating, radial
C0r
34,000 N
Basic static load rating, radial
Cur
2,330 N
Fatigue load limit, radial
nG Grease
13,000 1/min
Limiting speed for grease lubrication
nG Oil
20,000 1/min
Limiting speed for oil lubrication
≈m
2.02 kg
Weight

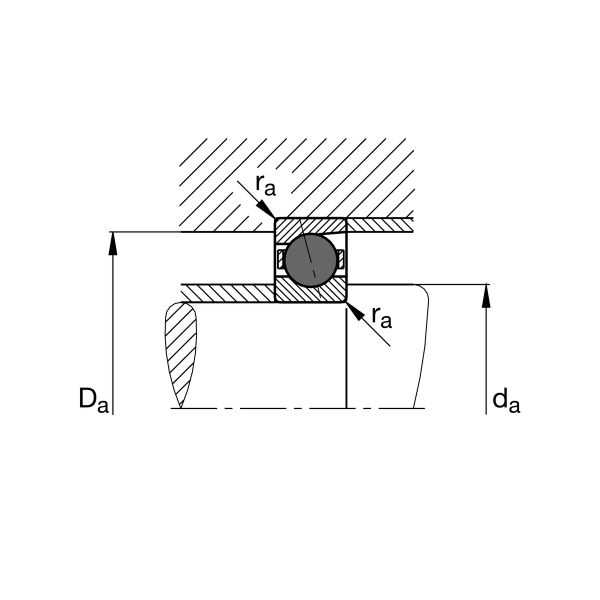

Mounting dimensions
da
121 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
159 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius

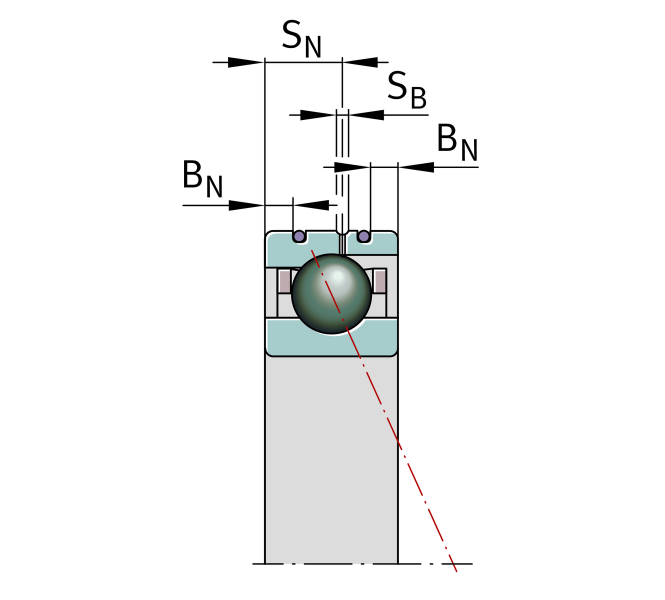

BN
6 mm
Distance ring grooves
BN1
6 mm
Distance ring grooves
SN
16.2 mm
Distance to lubrication hole
SB
2.2 mm
Width of lubricating groove
a
46.6 mm
Distance between the apexes of the pressure cones
