FAG HCB7012-CDLR-T-P4S-UL
Spindle bearing HCB70..-CDLR, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, with ceramic balls, restricted tolerances, for direct oil feed via outer ring, with inserted O rings
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
95 mm
Outside diameter
B
18 mm
Width
Cr
40,000 N
Basic dynamic load rating, radial
C0r
22,700 N
Basic static load rating, radial
Cur
1,830 N
Fatigue load limit, radial
nG Grease
20,000 1/min
Limiting speed for grease lubrication
nG Oil
32,000 1/min
Limiting speed for oil lubrication
≈m
0.326 kg
Weight
Mounting dimensions
da
67 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
88 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius

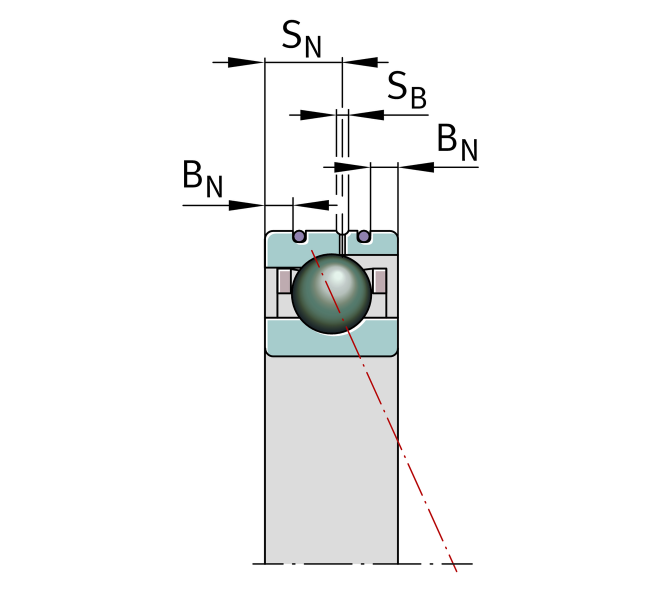

BN
4.3 mm
Distance ring grooves
BN1
4.3 mm
Distance ring grooves
SN
9.7 mm
Distance to lubrication hole
SB
1.4 mm
Width of lubricating groove
a
19.4 mm
Distance between the apexes of the pressure cones
