FAG HCB7014-CDLR-T-P4S-UL
Spindle bearing HCB70..-CDLR, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, with ceramic balls, restricted tolerances, for direct oil feed via outer ring, with inserted O rings
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
110 mm
Outside diameter
B
20 mm
Width
Cr
50,000 N
Basic dynamic load rating, radial
C0r
29,500 N
Basic static load rating, radial
Cur
2,360 N
Fatigue load limit, radial
nG Grease
18,000 1/min
Limiting speed for grease lubrication
nG Oil
28,000 1/min
Limiting speed for oil lubrication
≈m
0.48 kg
Weight
Mounting dimensions
da
77 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
102 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius

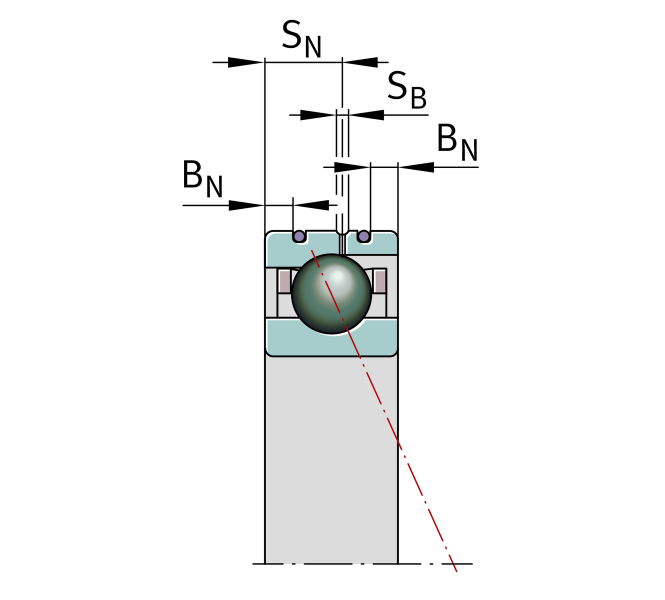

BN
4 mm
Distance ring grooves
BN1
4 mm
Distance ring grooves
SN
11.6 mm
Distance to lubrication hole
SB
1.4 mm
Width of lubricating groove
a
22.1 mm
Distance between the apexes of the pressure cones
