FAG HCB71905-E-T-P4S-UL
Spindle bearing HCB719..-E, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, with ceramic balls, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock

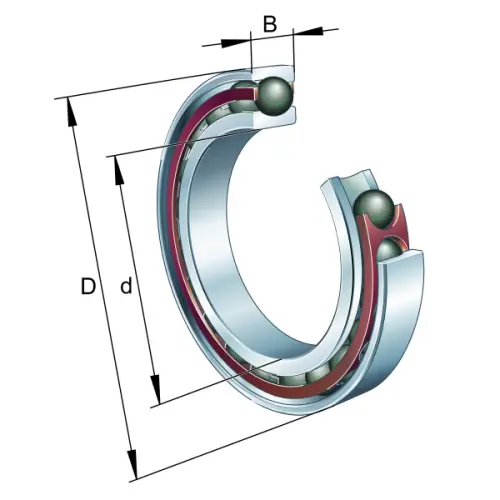

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
42 mm
Outside diameter
B
9 mm
Width
Cr
7,600 N
Basic dynamic load rating, radial
C0r
3,450 N
Basic static load rating, radial
Cur
280 N
Fatigue load limit, radial
nG Grease
45,000 1/min
Limiting speed for grease lubrication
nG Oil
67,000 1/min
Limiting speed for oil lubrication
≈m
0.039 kg
Weight

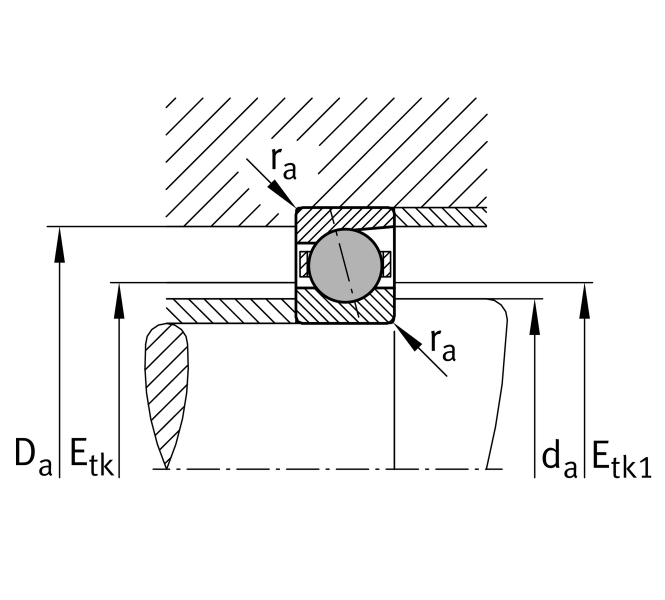

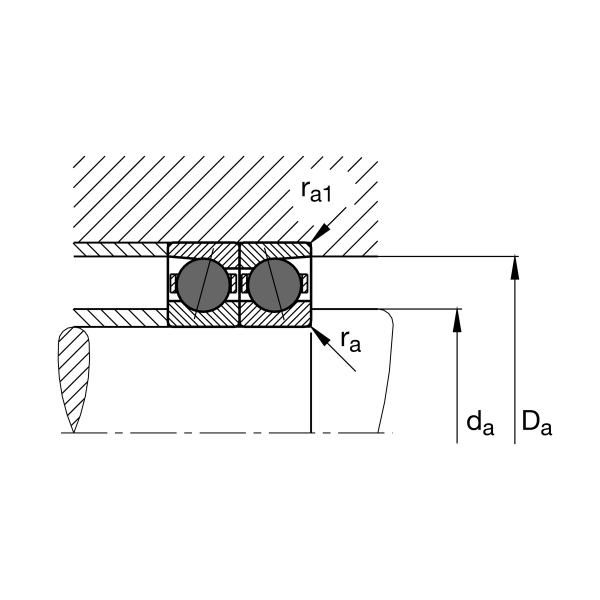

Mounting dimensions
da
29 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
38.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.3 mm
Maximum recess radius
ra1 max
0.15 mm
Maximum recess radius
Etk min
31 mm
Minimum diameter injection pitch
Etk max
32 mm
Maximum diameter injection pitch
Etk1 min
31 mm
Minimum diameter injection pitch
Etk1 max
32 mm
Maximum diameter injection pitch
a
12.3 mm
Distance between the apexes of the pressure cones
