FAG HCB71921-EDLR-T-P4S-UL
Spindle bearing HCB719..-EDLR, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, with ceramic balls, restricted tolerances, for direct oil feed via outer ring, with inserted O rings
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
105 mm
Bore diameter
D
145 mm
Outside diameter
B
20 mm
Width
Cr
57,000 N
Basic dynamic load rating, radial
C0r
41,000 N
Basic static load rating, radial
Cur
2,950 N
Fatigue load limit, radial
nG Grease
11,000 1/min
Limiting speed for grease lubrication
nG Oil
17,000 1/min
Limiting speed for oil lubrication
≈m
0.68 kg
Weight
Mounting dimensions
da
112 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
138 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius

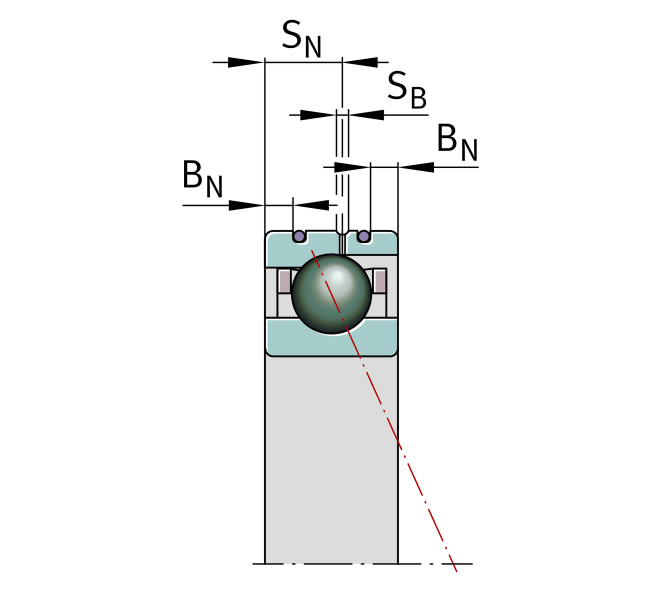

BN
4 mm
Distance ring grooves
BN1
4 mm
Distance ring grooves
SN
12 mm
Distance to lubrication hole
SB
2.2 mm
Width of lubricating groove
a
39.1 mm
Distance between the apexes of the pressure cones
