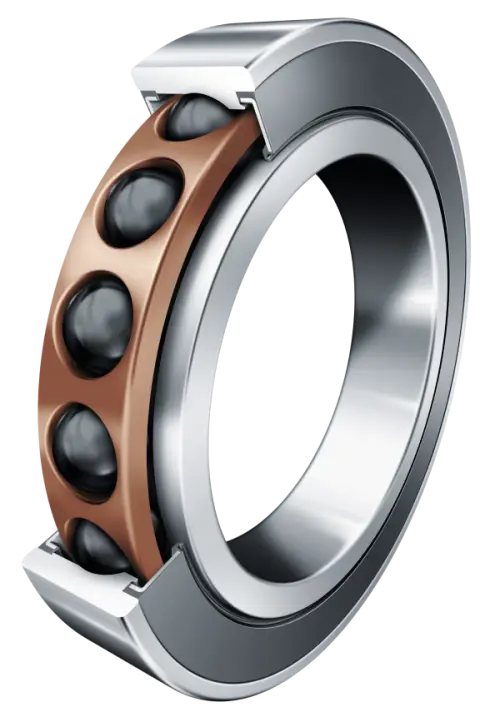

FAG HCB71922-C-2RSD-T-P4S-UL
Spindle bearing HCB719..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
150 mm
Outside diameter
B
20 mm
Width
Cr
61,000 N
Basic dynamic load rating, radial
C0r
45,000 N
Basic static load rating, radial
Cur
3,200 N
Fatigue load limit, radial
nG Grease
12,000 1/min
Limiting speed for grease lubrication
≈m
0.72 kg
Weight

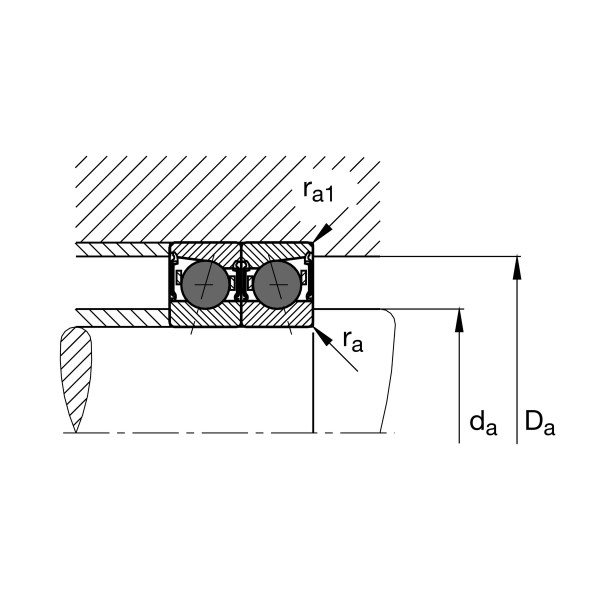

Mounting dimensions
da
117 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
143 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
a
27.4 mm
Distance between the apexes of the pressure cones
