FAG HCB7200-C-T-P4S-UL
Radial Super Precision Bearings
Spindle bearing HCB72..-C, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, with ceramic balls, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

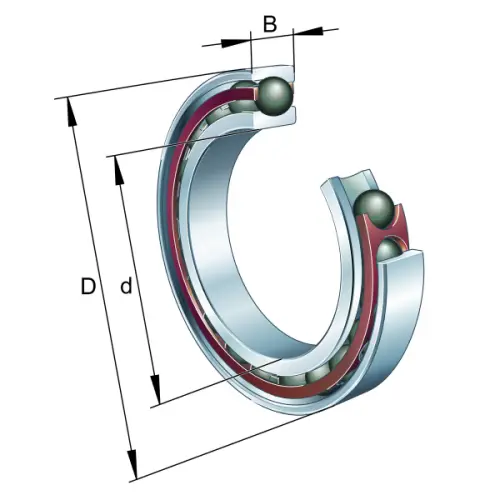

Main Dimensions & Performance Data
d
10 mm
Bore diameter
D
30 mm
Outside diameter
B
9 mm
Width
Cr
7,000 N
Basic dynamic load rating, radial
C0r
2,800 N
Basic static load rating, radial
Cur
229 N
Fatigue load limit, radial
nG Grease
67,000 1/min
Limiting speed for grease lubrication
nG Oil
100,000 1/min
Limiting speed for oil lubrication
≈m
30 g
Weight

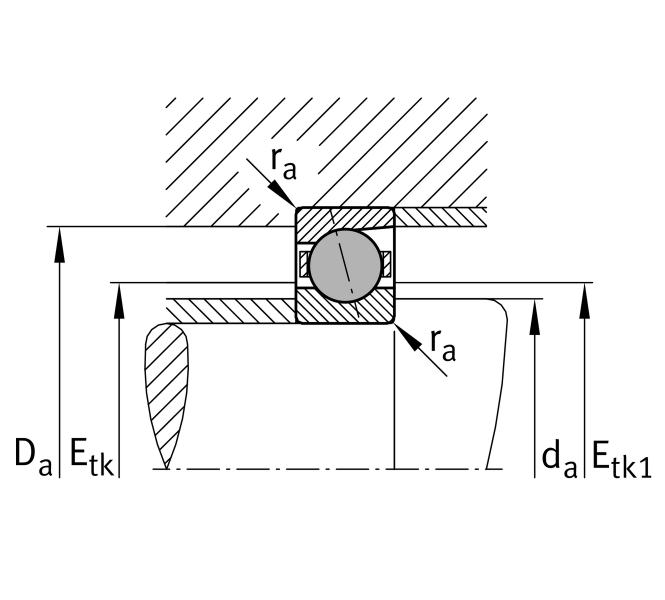

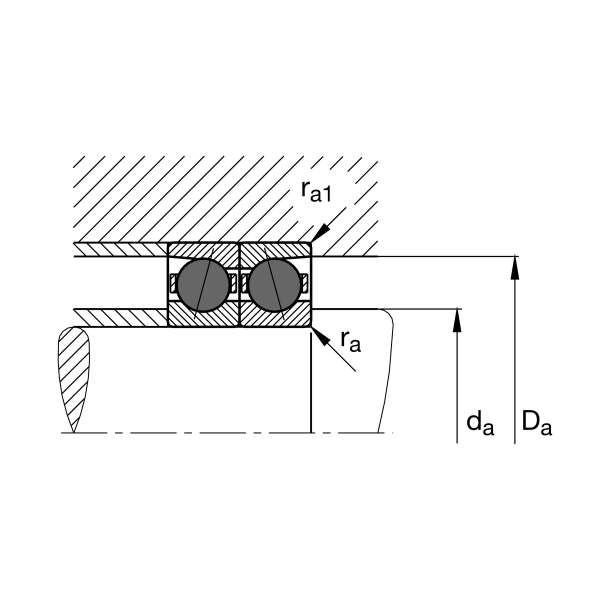

Mounting dimensions
da
14.5 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
25.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.3 mm
Maximum recess radius
Etk min
18 mm
Minimum diameter injection pitch
Etk max
19.2 mm
Maximum diameter injection pitch
Etk1 min
18 mm
Minimum diameter injection pitch
Etk1 max
19.2 mm
Maximum diameter injection pitch
a
7.2 mm
Distance between the apexes of the pressure cones
