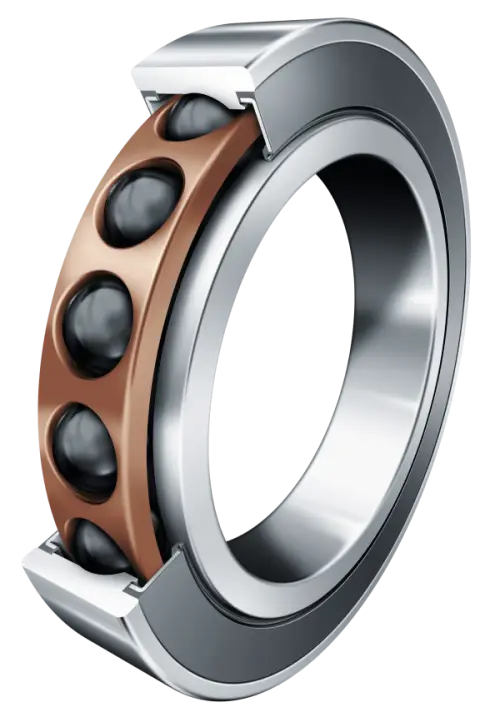

FAG HCB7211-E-2RSD-T-P4S-UL
Spindle bearing HCB72..-E-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
55 mm
Bore diameter
D
100 mm
Outside diameter
B
21 mm
Width
Cr
45,000 N
Basic dynamic load rating, radial
C0r
24,000 N
Basic static load rating, radial
Cur
1,930 N
Fatigue load limit, radial
nG Grease
15,000 1/min
Limiting speed for grease lubrication
≈m
0.564 kg
Weight

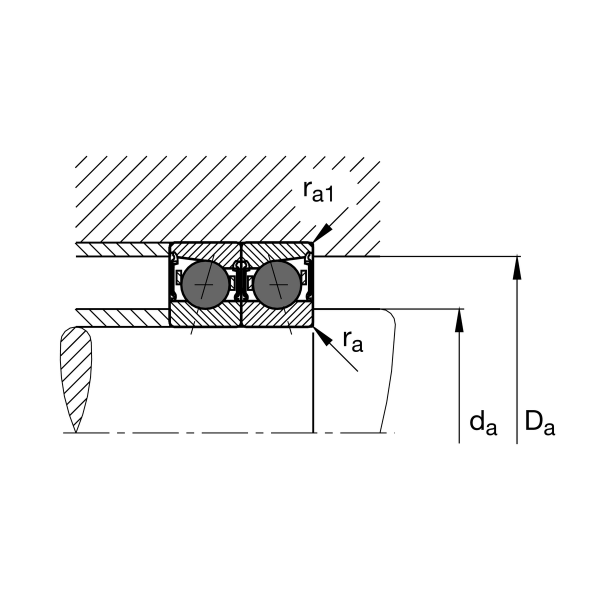

Mounting dimensions
da
63 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
92 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1.5 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
a
28.6 mm
Distance between the apexes of the pressure cones
