FAG HCB7215-C-T-P4S-UL
Spindle bearing HCB72..-C, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, with ceramic balls, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock

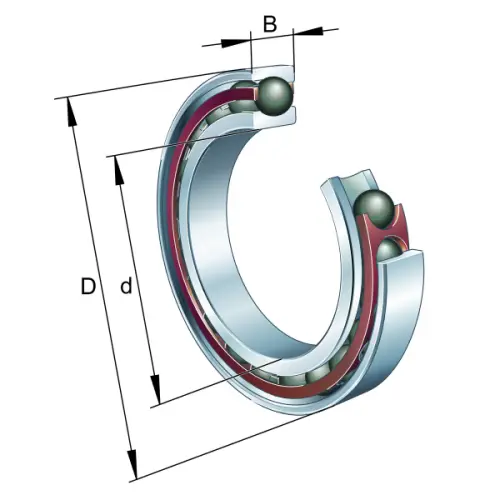

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
130 mm
Outside diameter
B
25 mm
Width
Cr
73,000 N
Basic dynamic load rating, radial
C0r
42,500 N
Basic static load rating, radial
Cur
3,400 N
Fatigue load limit, radial
nG Grease
14,000 1/min
Limiting speed for grease lubrication
nG Oil
22,000 1/min
Limiting speed for oil lubrication
≈m
1.05 kg
Weight

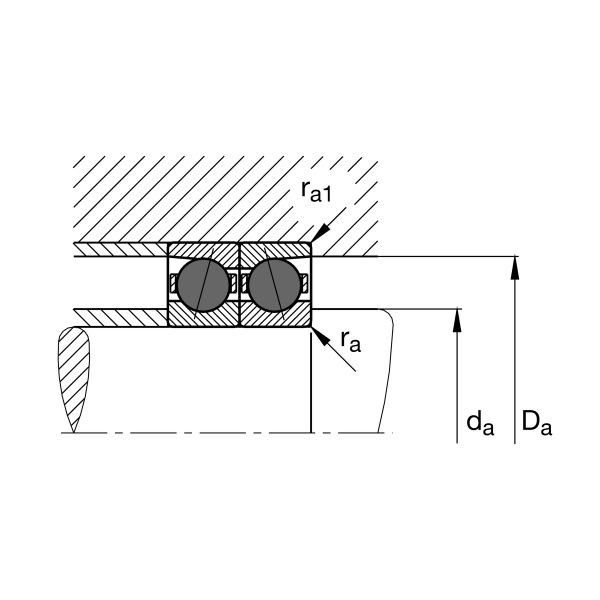

Mounting dimensions
da
85 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
120 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1.5 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius

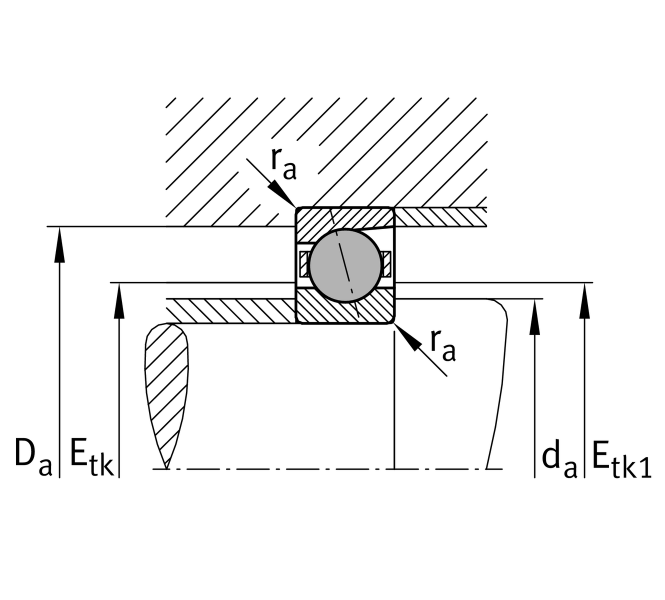

Etk min
93 mm
Minimum diameter injection pitch
Etk max
98.5 mm
Maximum diameter injection pitch
Etk1 min
93 mm
Minimum diameter injection pitch
Etk1 max
98.5 mm
Maximum diameter injection pitch
a
26.2 mm
Distance between the apexes of the pressure cones
