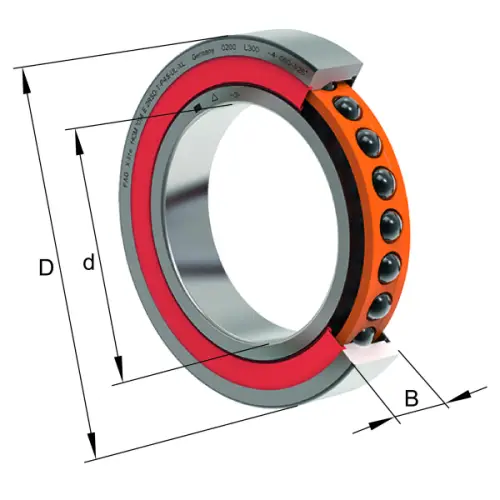

FAG HCM7024-C-2RSD-T-P4S-UL-XL
High speed spindle bearing HCM70..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

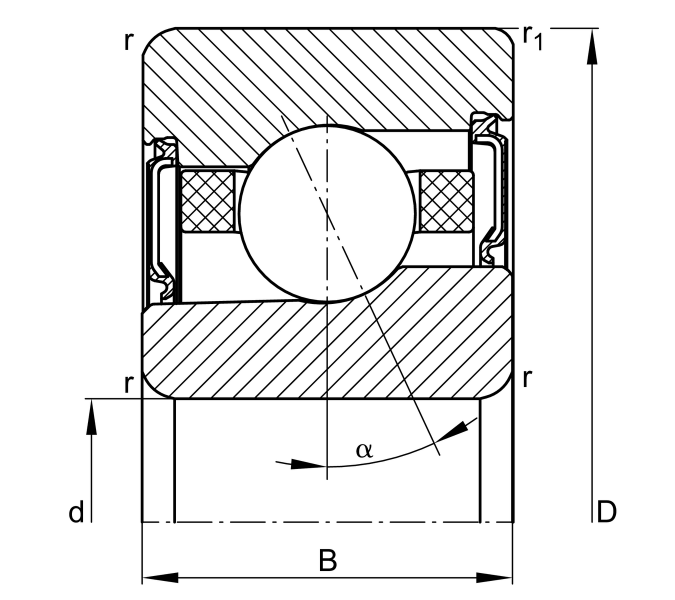

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
180 mm
Outside diameter
B
28 mm
Width
Cr
56,000 N
Basic dynamic load rating, radial
C0r
42,500 N
Basic static load rating, radial
Cur
2,800 N
Fatigue load limit, radial
nG Grease
14,000 1/min
Limiting speed for grease lubrication
≈m
2.1 kg
Weight

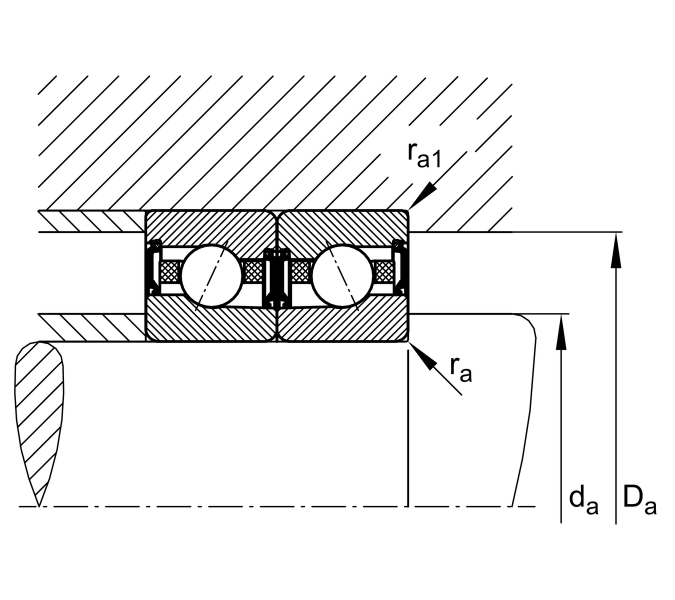

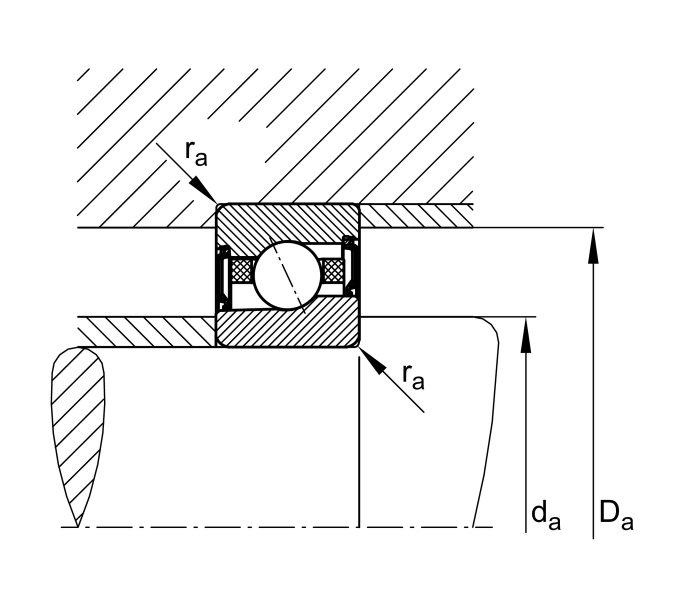

Mounting dimensions
da
131 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
169 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
a
36.9 mm
Distance between the apexes of the pressure cones
