FAG HCM7026-C-2RSD-T-P4S-UL-XL
Radial Super Precision Bearings
High speed spindle bearing HCM70..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

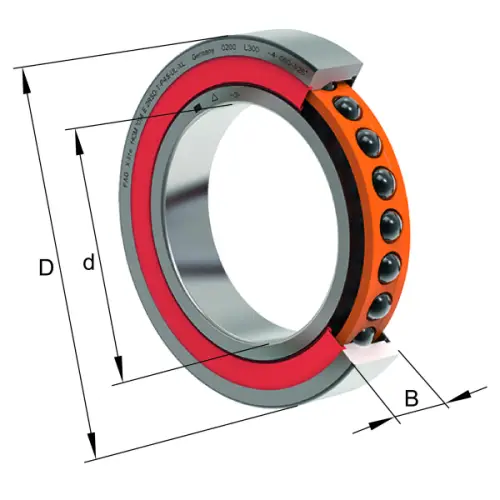

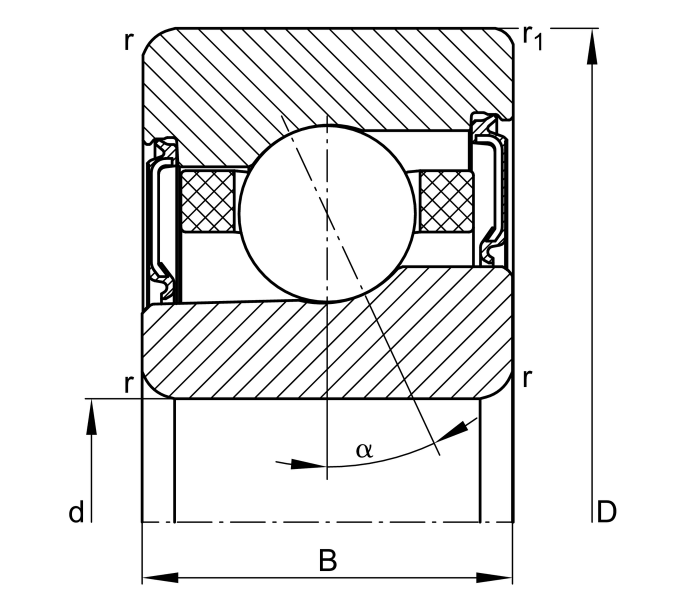

Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
200 mm
Outside diameter
B
33 mm
Width
Cr
58,000 N
Basic dynamic load rating, radial
C0r
47,500 N
Basic static load rating, radial
Cur
3,000 N
Fatigue load limit, radial
nG Grease
12,000 1/min
Limiting speed for grease lubrication
≈m
3.5 kg
Weight

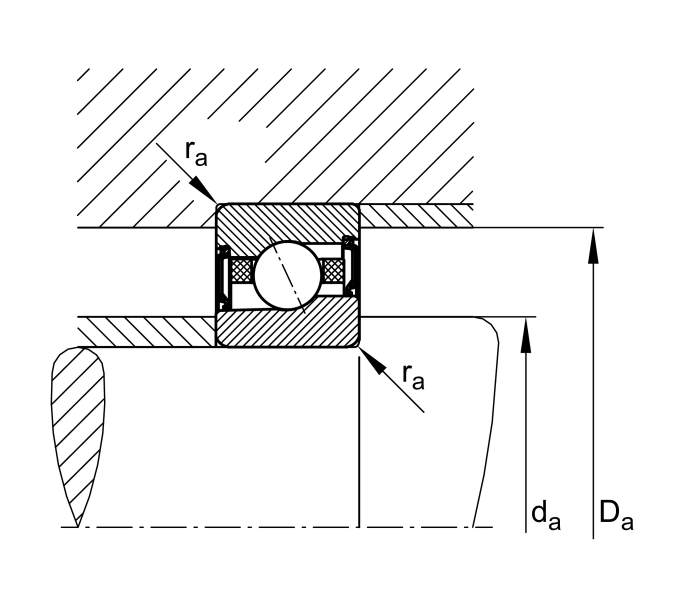

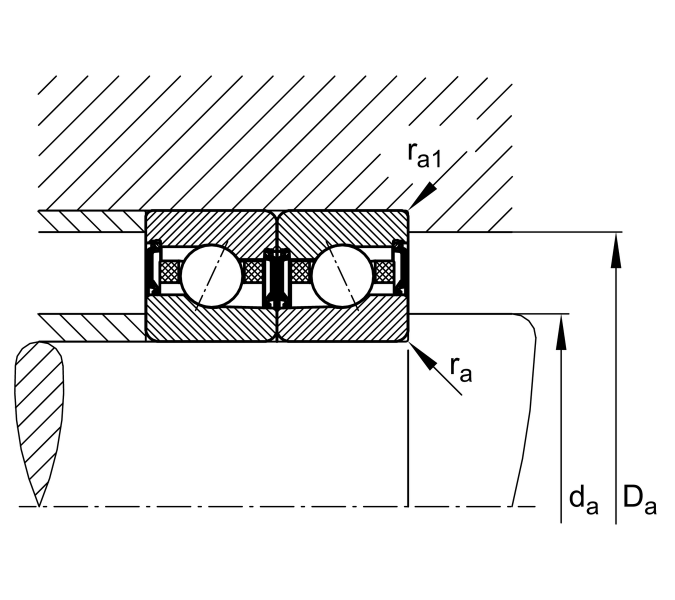

Mounting dimensions
da
142 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
189 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
a
41.7 mm
Distance between the apexes of the pressure cones
