FAG HCM71912-CDLR-T-P4S-UL-XL

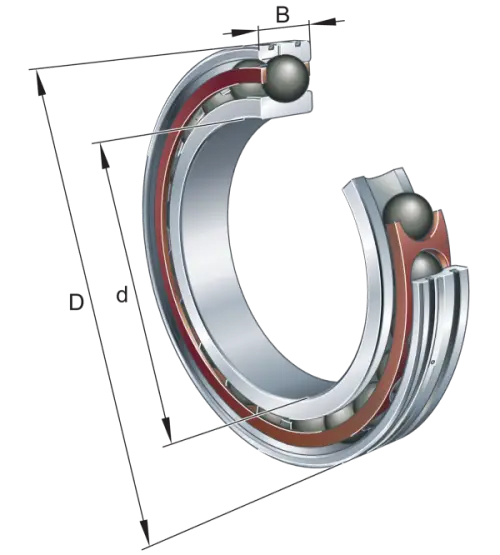

High speed spindle bearing HCM719..-CDLR, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, with ceramic balls, restricted tolerances, for direct oil feed via outer ring, with inserted O rings
(BRAND)：FAG
(Availability)：In Stock

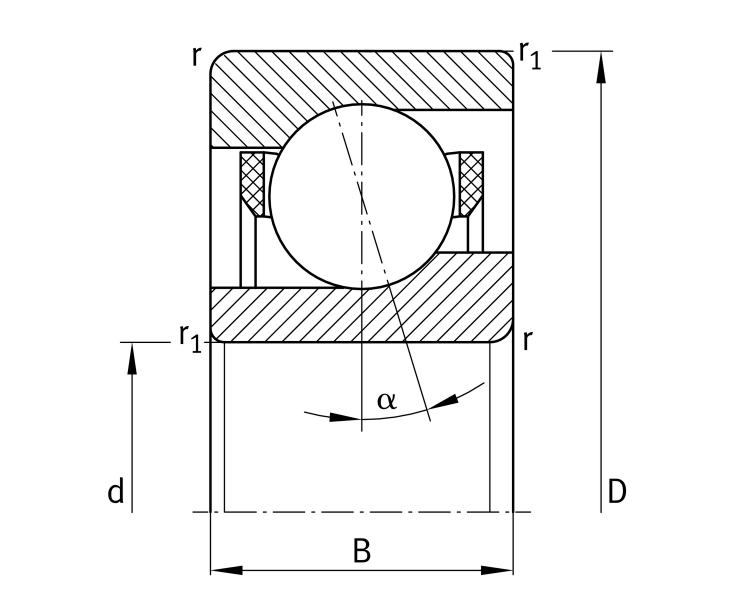

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
85 mm
Outside diameter
B
13 mm
Width
Cr
19,500 N
Basic dynamic load rating, radial
C0r
10,500 N
Basic static load rating, radial
Cur
850 N
Fatigue load limit, radial
nG Grease
28,000 1/min
Limiting speed for grease lubrication
nG Oil
40,000 1/min
Limiting speed for oil lubrication
≈m
0.14 kg
Weight

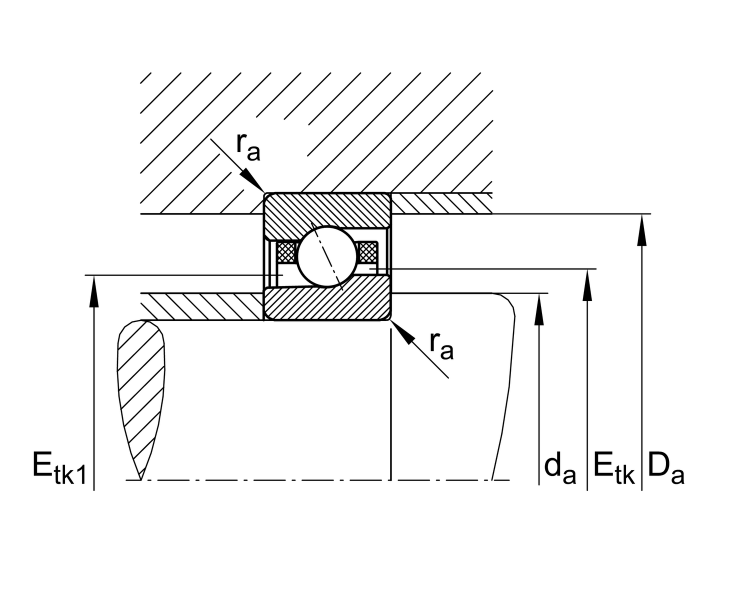

Mounting dimensions
da
65 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
80.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.3 mm
Maximum recess radius

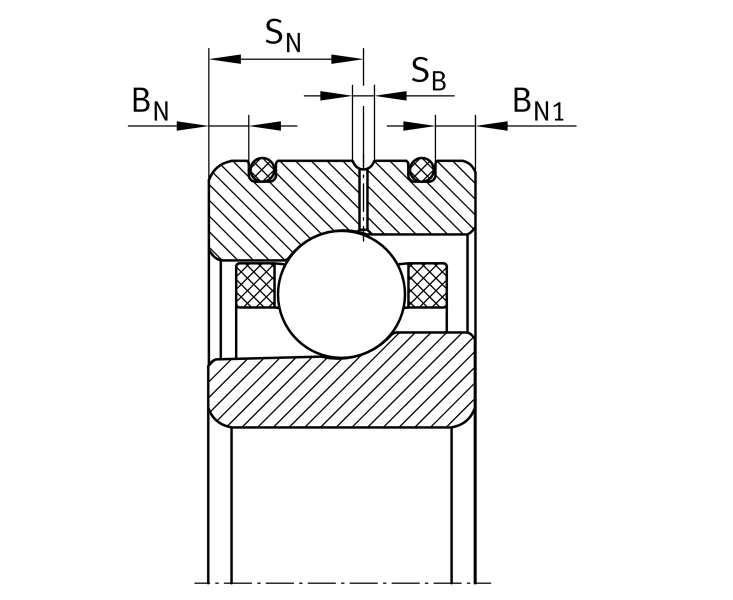

BN
2.8 mm
Distance ring grooves
BN1
2 mm
Distance ring grooves
SN
7.6 mm
Distance to lubrication hole
SB
1.4 mm
Width of lubricating groove
a
17.6 mm
Distance between the apexes of the pressure cones
