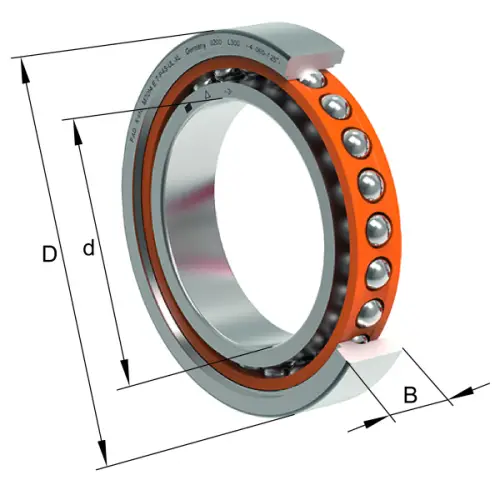

FAG HCM71919-C-T-P4S-UL-XL
High speed spindle bearing HCM719..-C, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, with ceramic balls, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock

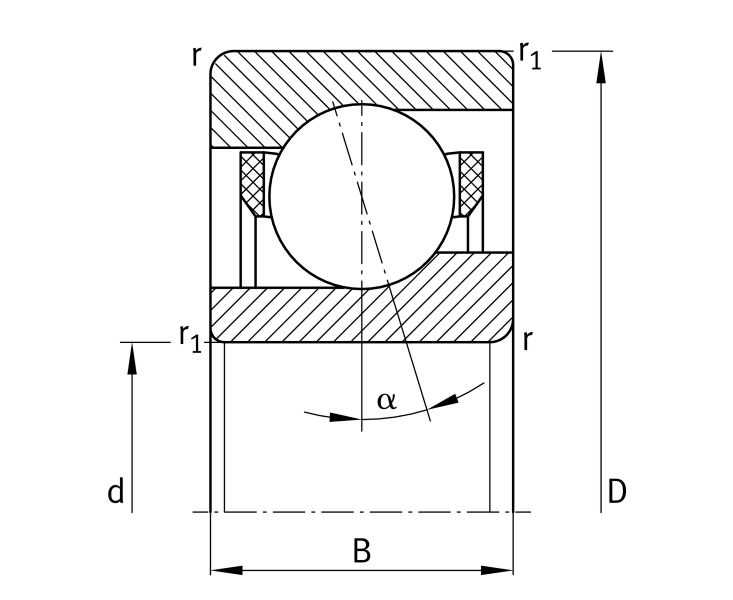

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
130 mm
Outside diameter
B
18 mm
Width
Cr
33,500 N
Basic dynamic load rating, radial
C0r
21,000 N
Basic static load rating, radial
Cur
1,600 N
Fatigue load limit, radial
nG Grease
18,000 1/min
Limiting speed for grease lubrication
nG Oil
26,000 1/min
Limiting speed for oil lubrication
≈m
0.47 kg
Weight

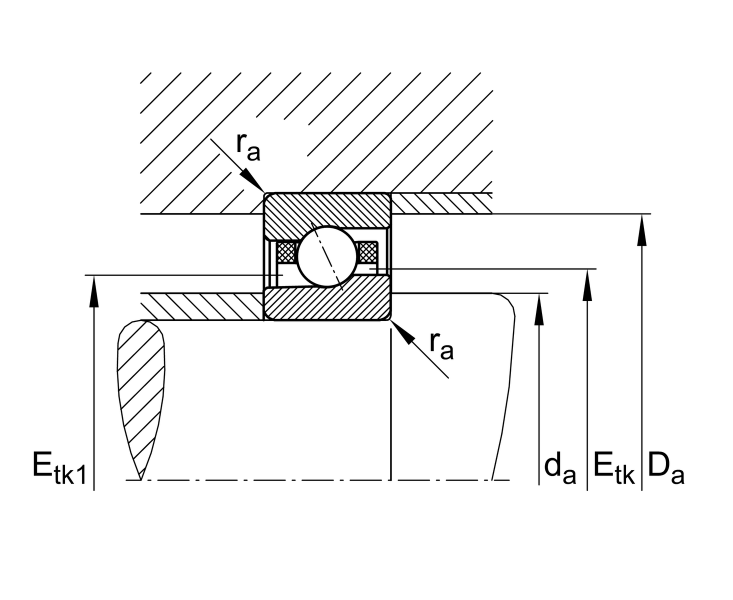

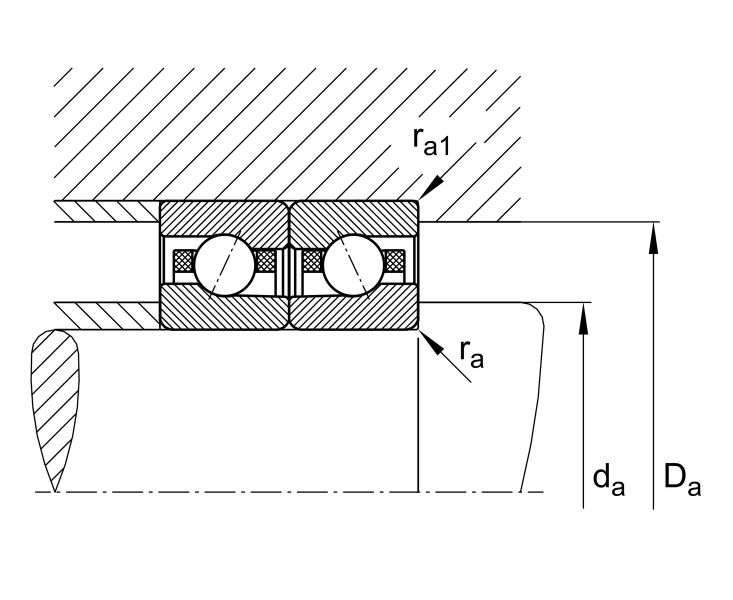

Mounting dimensions
da
102 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
124 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
Etk min
106.3 mm
Minimum diameter injection pitch
Etk max
109.3 mm
Maximum diameter injection pitch
Etk1 min
102.4 mm
Minimum diameter injection pitch
Etk1 max
109.3 mm
Maximum diameter injection pitch
a
26.2 mm
Distance between the apexes of the pressure cones
