FAG HCS71902-E-T-P4S-UL
High speed spindle bearing HCS719..-E, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
28 mm
Outside diameter
B
7 mm
Width
Cr
2,410 N
Basic dynamic load rating, radial
C0r
950 N
Basic static load rating, radial
Cur
76 N
Fatigue load limit, radial
nG Grease
85,000 1/min
Limiting speed for grease lubrication
≈m
18 g
Weight

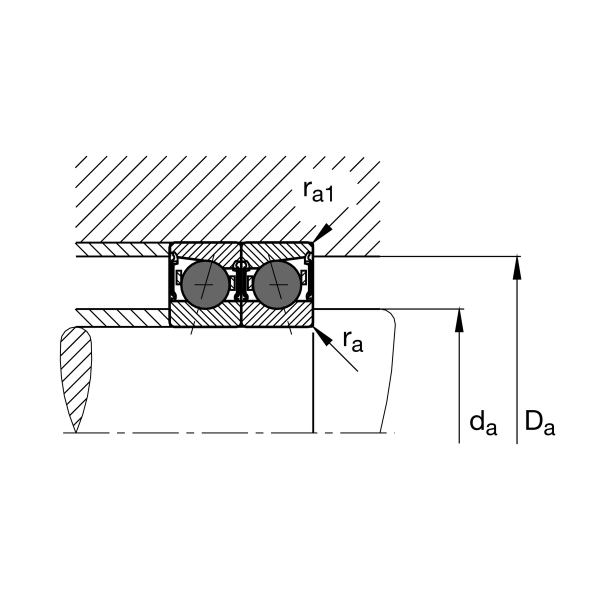

Mounting dimensions
da
18 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
25.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.3 mm
Maximum recess radius
ra1 max
0.1 mm
Maximum recess radius
a
8.5 mm
Distance between the apexes of the pressure cones
