FAG HCS71903-E-T-P4S-UL
High speed spindle bearing HCS719..-E, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
30 mm
Outside diameter
B
7 mm
Width
Cr
2,480 N
Basic dynamic load rating, radial
C0r
1,030 N
Basic static load rating, radial
Cur
83 N
Fatigue load limit, radial
nG Grease
80,000 1/min
Limiting speed for grease lubrication
≈m
21 g
Weight

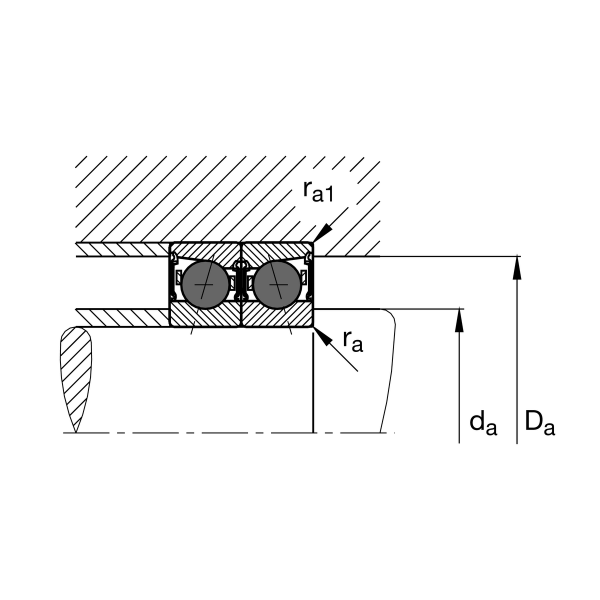

Mounting dimensions
da
20 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
27.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.3 mm
Maximum recess radius
ra1 max
0.1 mm
Maximum recess radius
a
9 mm
Distance between the apexes of the pressure cones
