FAG HCS71921-E-T-P4S-UL
High speed spindle bearing HCS719..-E, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
105 mm
Bore diameter
D
145 mm
Outside diameter
B
20 mm
Width
Cr
27,500 N
Basic dynamic load rating, radial
C0r
22,400 N
Basic static load rating, radial
Cur
1,610 N
Fatigue load limit, radial
nG Grease
15,000 1/min
Limiting speed for grease lubrication
≈m
0.92 kg
Weight

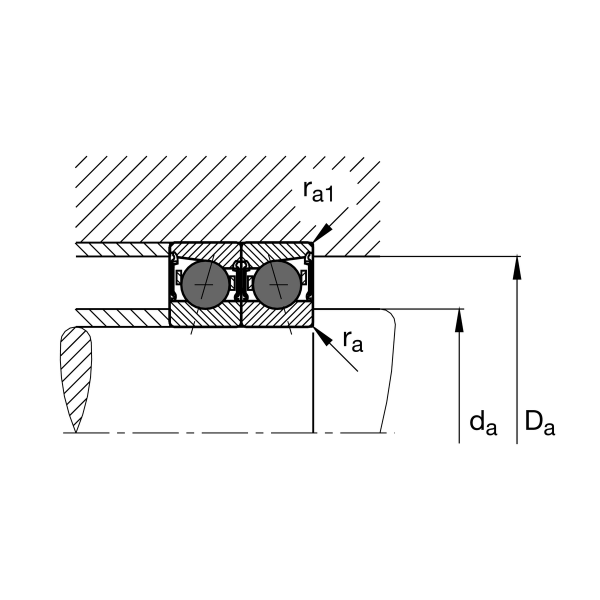

Mounting dimensions
da
112 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
138 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
a
39.1 mm
Distance between the apexes of the pressure cones
