FAG HSS71900-C-T-P4S-UL
Radial Super Precision Bearings

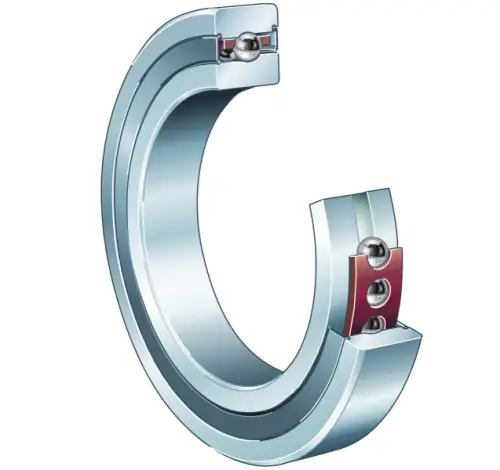

High speed spindle bearing HSS719..-C, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

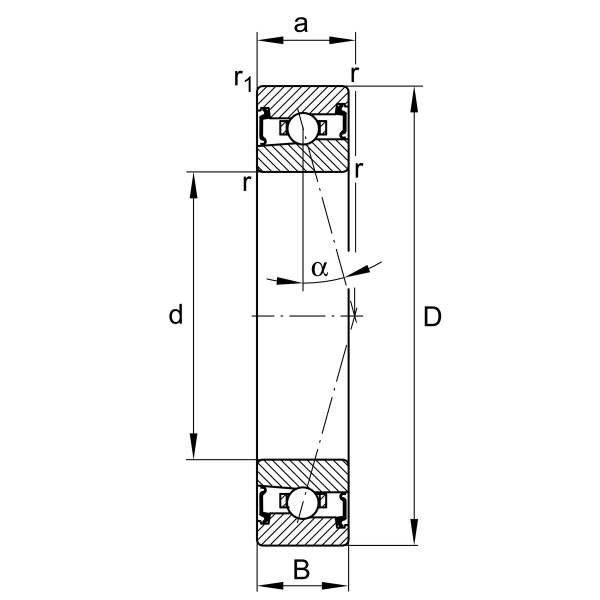

Main Dimensions & Performance Data
d
10 mm
Bore diameter
D
22 mm
Outside diameter
B
6 mm
Width
Cr
1,790 N
Basic dynamic load rating, radial
C0r
650 N
Basic static load rating, radial
Cur
69 N
Fatigue load limit, radial
nG Grease
100,000 1/min
Limiting speed for grease lubrication
≈m
11 g
Weight

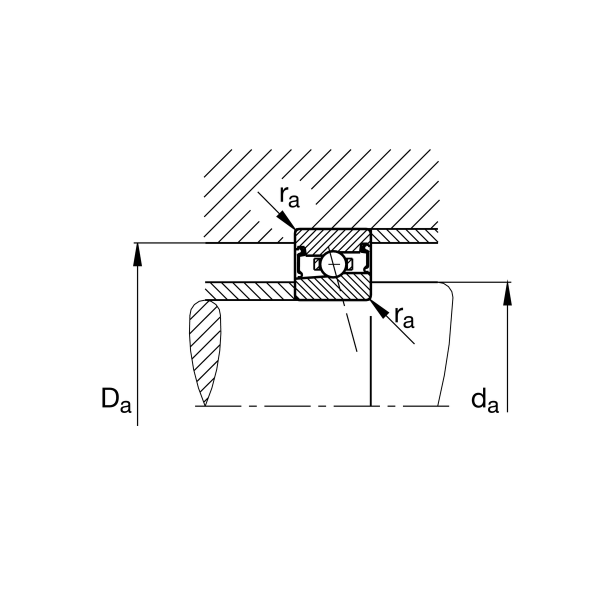

Mounting dimensions
da
13 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
19.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.3 mm
Maximum recess radius
ra1 max
0.1 mm
Maximum recess radius
a
5.1 mm
Distance between the apexes of the pressure cones
