FAG M7018-C-2RSD-T-P4S-UL-XL
High speed spindle bearing M70..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock

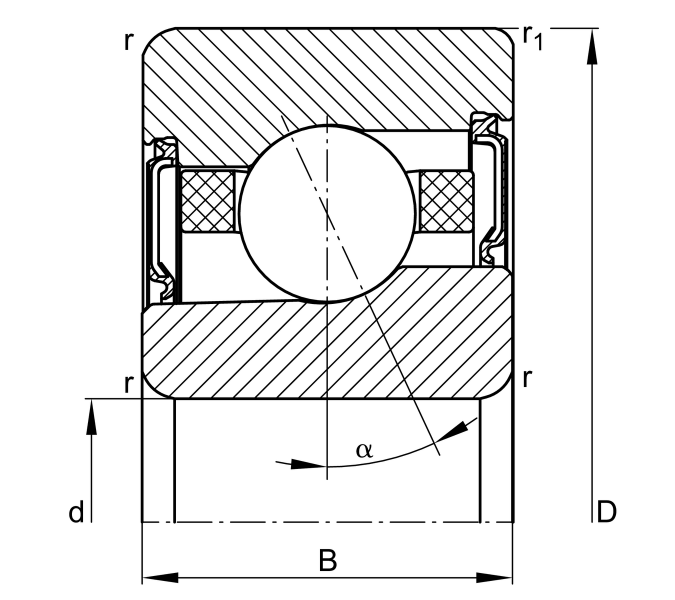

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
140 mm
Outside diameter
B
24 mm
Width
Cr
39,500 N
Basic dynamic load rating, radial
C0r
27,500 N
Basic static load rating, radial
Cur
2,700 N
Fatigue load limit, radial
nG Grease
14,000 1/min
Limiting speed for grease lubrication
≈m
1.2 kg
Weight

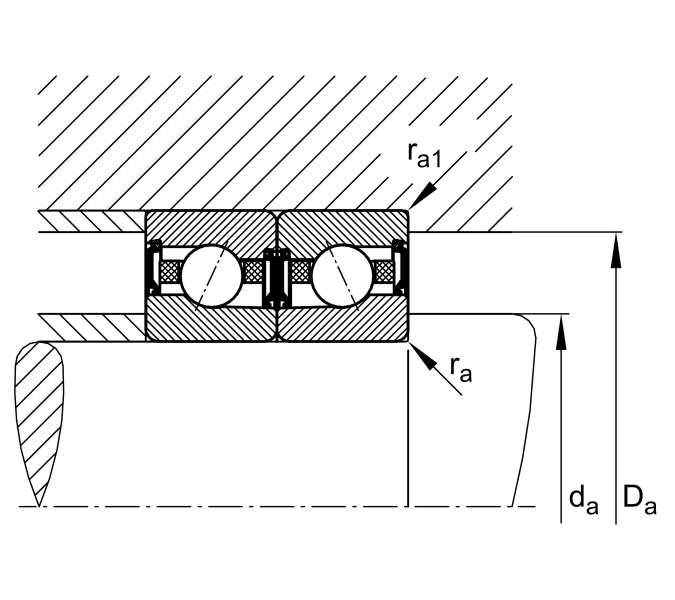

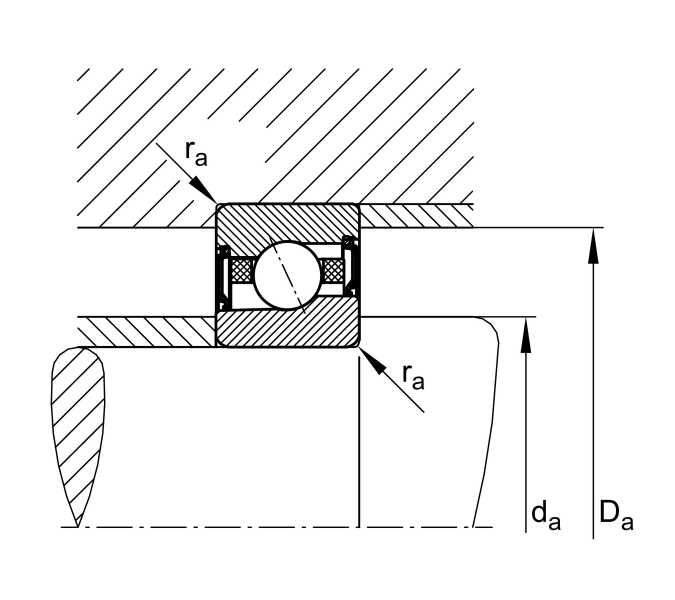

Mounting dimensions
da
100 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
131 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1.5 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
a
29.6 mm
Distance between the apexes of the pressure cones
