FAG M7021-C-2RSD-T-P4S-UL-XL
Radial Super Precision Bearings

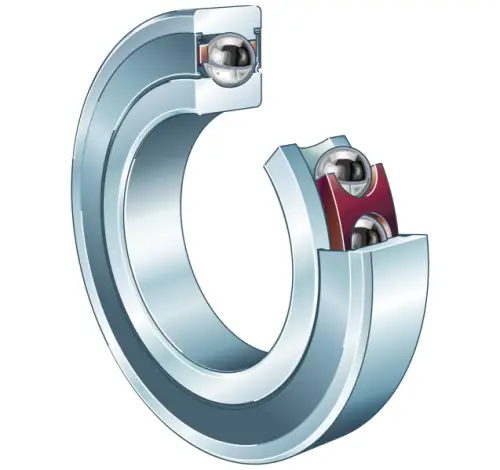

High speed spindle bearing M70..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

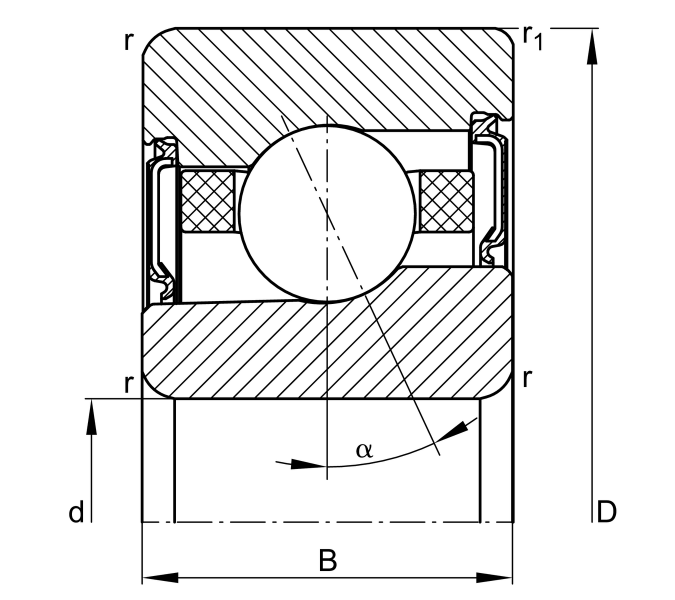

Main Dimensions & Performance Data
d
105 mm
Bore diameter
D
160 mm
Outside diameter
B
26 mm
Width
Cr
53,000 N
Basic dynamic load rating, radial
C0r
39,500 N
Basic static load rating, radial
Cur
3,650 N
Fatigue load limit, radial
nG Grease
12,000 1/min
Limiting speed for grease lubrication
≈m
1.7 kg
Weight

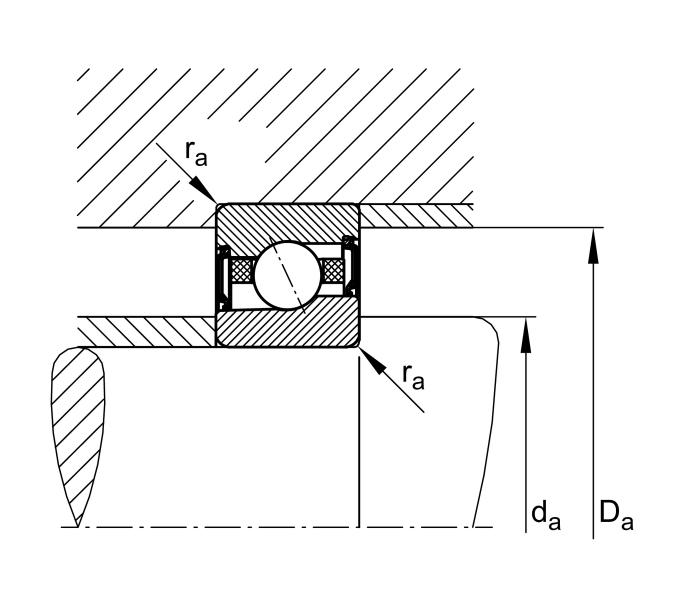

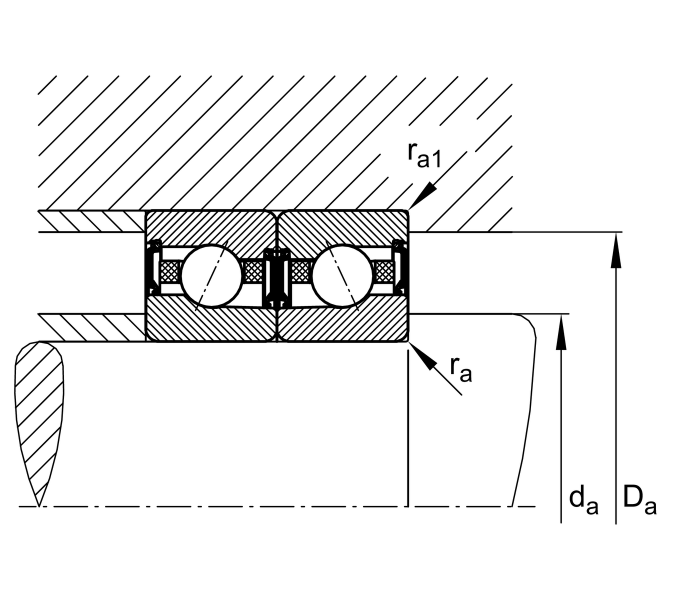

Mounting dimensions
da
116 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
150 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
a
33.3 mm
Distance between the apexes of the pressure cones
