FAG M71909-E-2RSD-T-P4S-UL-XL
High speed spindle bearing M719..-E-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock

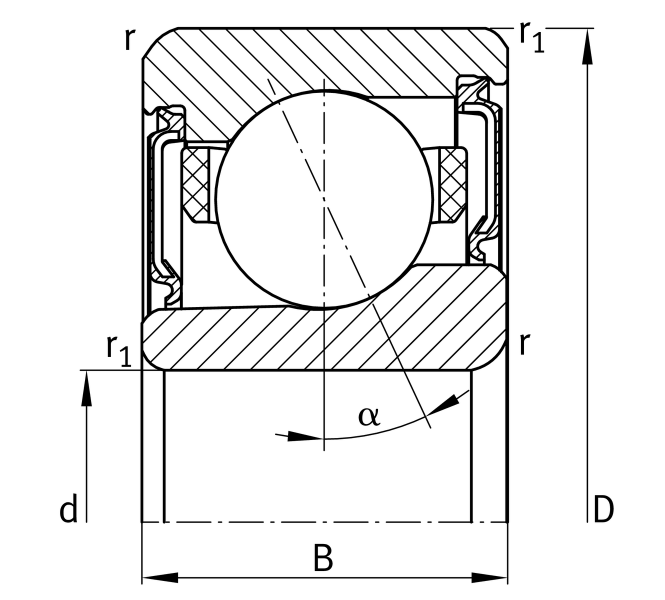

Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
68 mm
Outside diameter
B
12 mm
Width
Cr
11,700 N
Basic dynamic load rating, radial
C0r
6,000 N
Basic static load rating, radial
Cur
640 N
Fatigue load limit, radial
nG Grease
28,000 1/min
Limiting speed for grease lubrication
≈m
0.13 kg
Weight

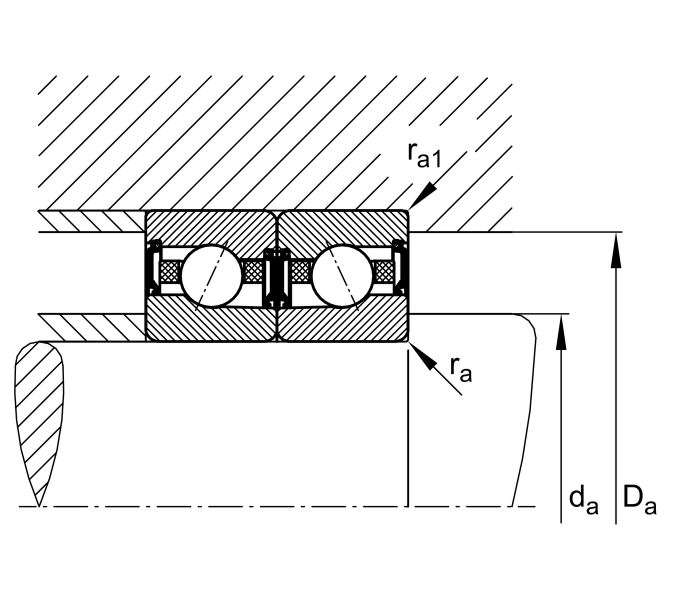

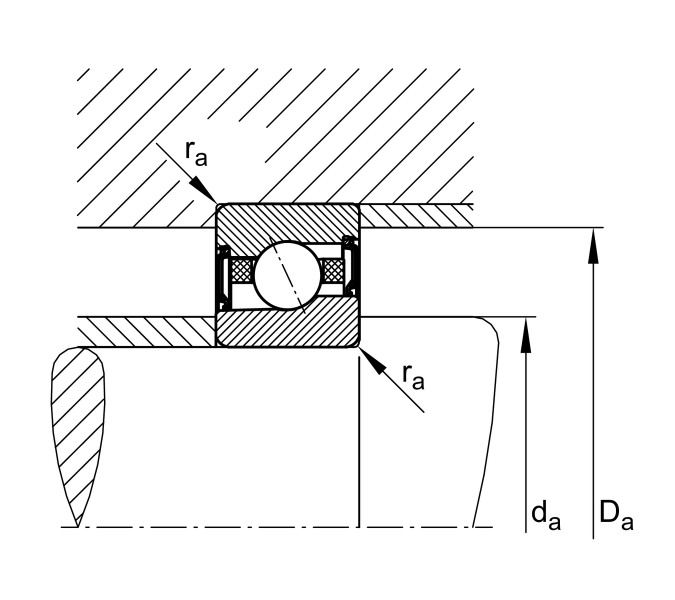

Mounting dimensions
da
50 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
63.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.15 mm
Maximum recess radius
a
19.2 mm
Distance between the apexes of the pressure cones
