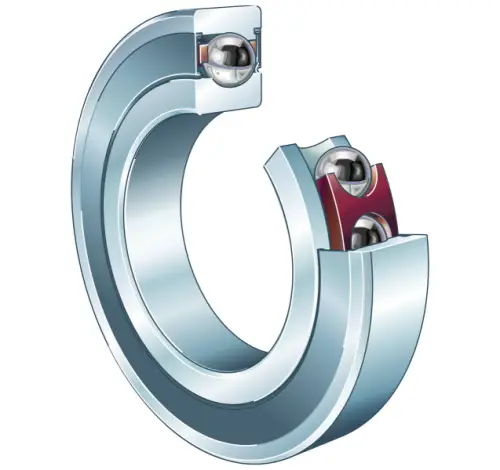

FAG M71921-C-2RSD-T-P4S-UL-XL
Radial Super Precision Bearings
High speed spindle bearing M719..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

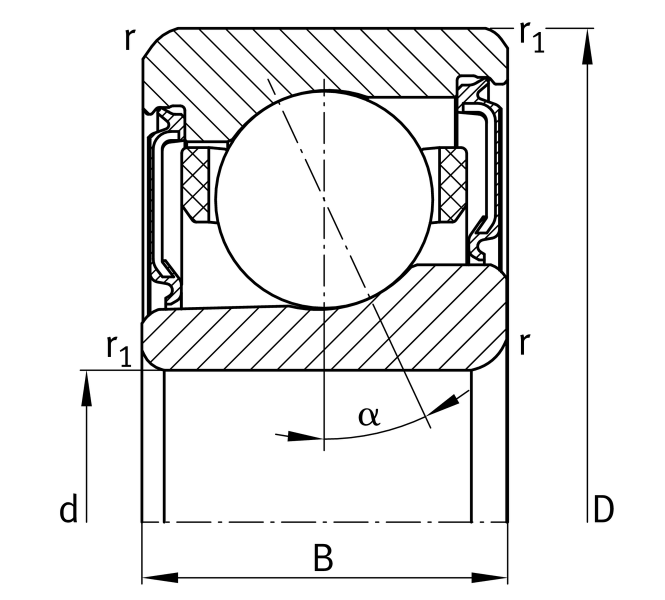

Main Dimensions & Performance Data
d
105 mm
Bore diameter
D
145 mm
Outside diameter
B
20 mm
Width
Cr
39,000 N
Basic dynamic load rating, radial
C0r
27,000 N
Basic static load rating, radial
Cur
2,550 N
Fatigue load limit, radial
nG Grease
13,000 1/min
Limiting speed for grease lubrication
≈m
0.82 kg
Weight

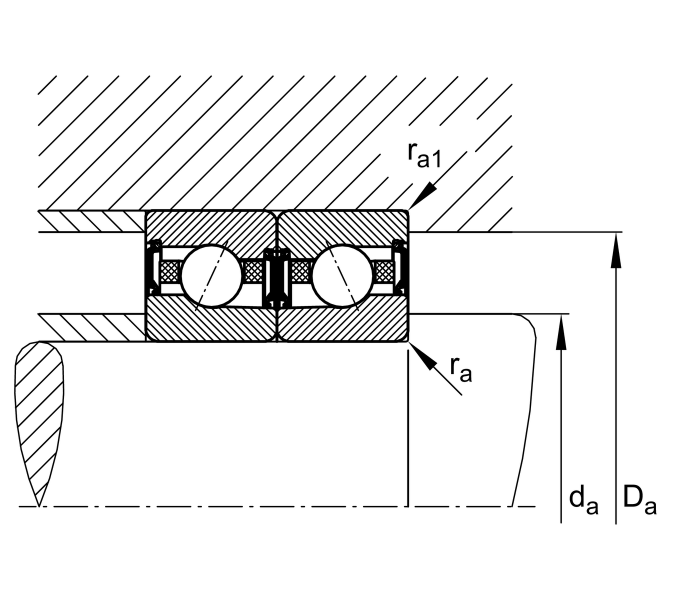

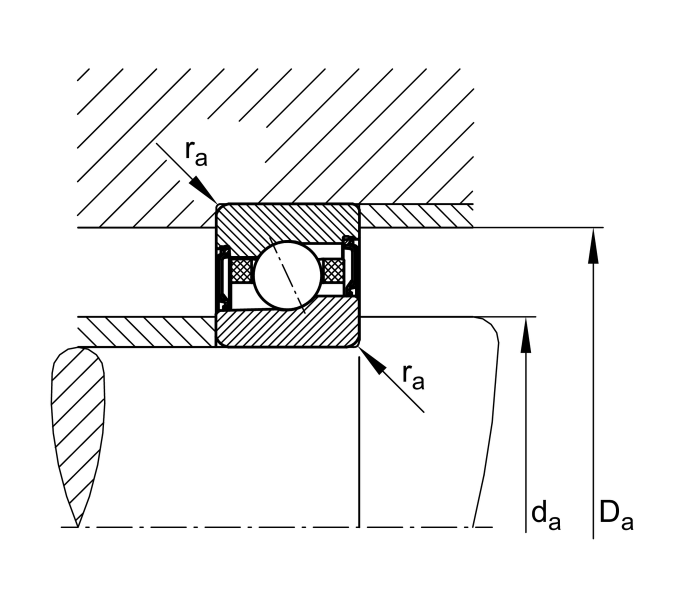

Mounting dimensions
da
112 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
138 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
a
29.1 mm
Distance between the apexes of the pressure cones
