FAG NN3010-D-K-TVP-SP-XL
Radial Super Precision Bearings
Super precision cylindrical roller bearings NN30..-D-K-TVP-SP, Non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

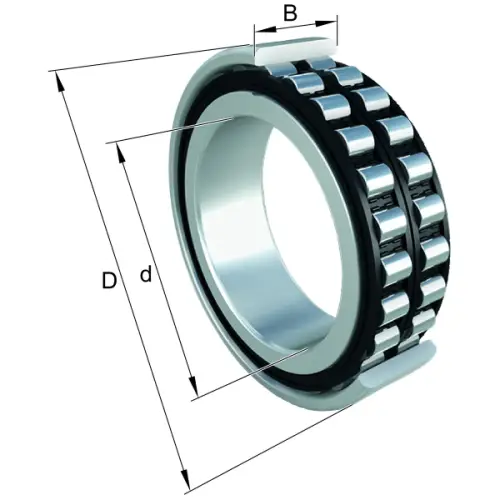

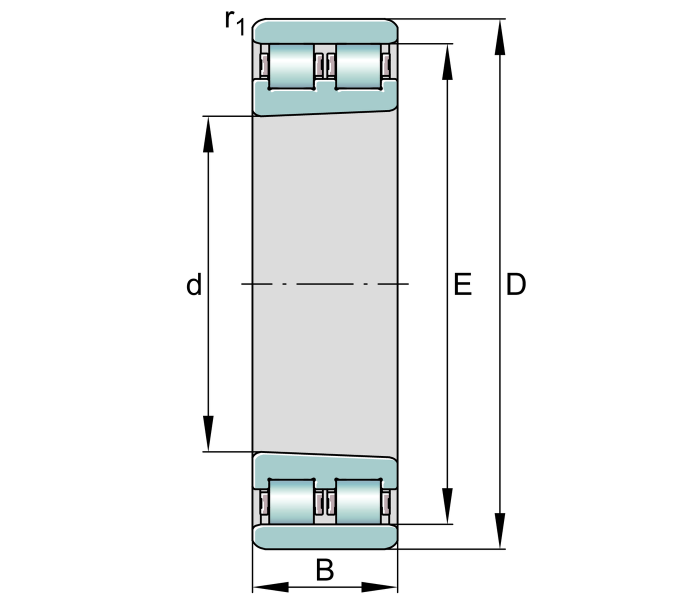

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
80 mm
Outside diameter
B
23 mm
Width
Cr
63,000 N
Basic dynamic load rating, radial
C0r
73,000 N
Basic static load rating, radial
Cur
11,300 N
Fatigue load limit, radial
nG Grease
13,500 1/min
Limiting speed for grease lubrication
nG Oil
15,900 1/min
Limiting speed for oil lubrication
≈m
0.389 kg
Weight

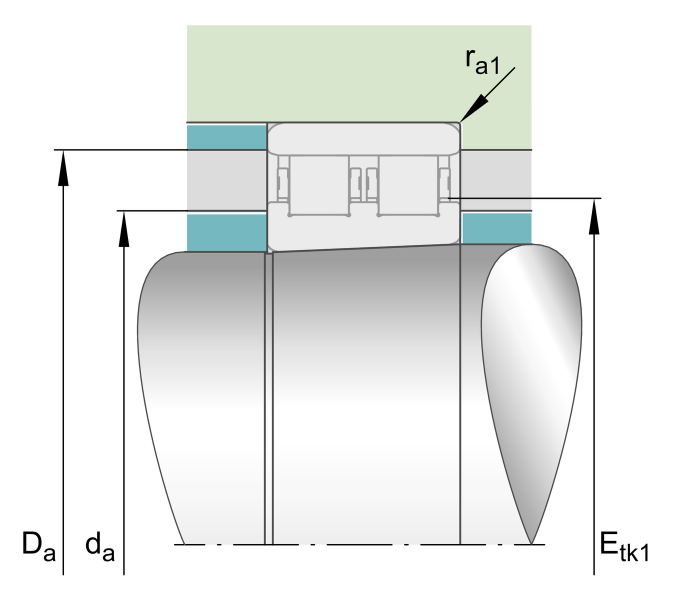

Mounting dimensions
da
58.5 mm
Diameter shaft shoulder
h12
Diameter shaft shoulder tolerance
Da
74.2 mm
Diameter of housing shoulder
H12
Shoulder diameter outer ring clearance
Etk 1 nom
71.2 mm
Injection pitch diameter min
ra1 max
1 mm
Maximum recess radius
