FAG NN3018-D-K-TVP-SP-XL
Radial Super Precision Bearings
Super precision cylindrical roller bearings NN30..-D-K-TVP-SP, Non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

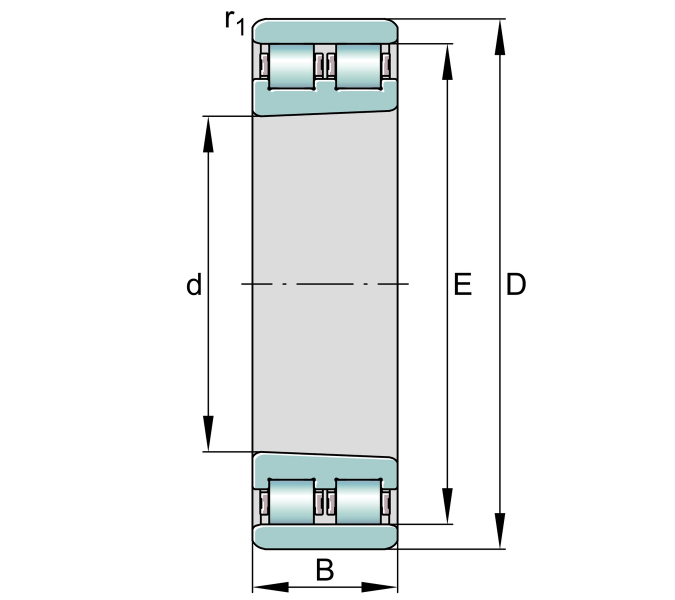

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
140 mm
Outside diameter
B
37 mm
Width
Cr
162,000 N
Basic dynamic load rating, radial
C0r
216,000 N
Basic static load rating, radial
Cur
33,500 N
Fatigue load limit, radial
nG Grease
7,600 1/min
Limiting speed for grease lubrication
nG Oil
8,900 1/min
Limiting speed for oil lubrication
≈m
1.903 kg
Weight

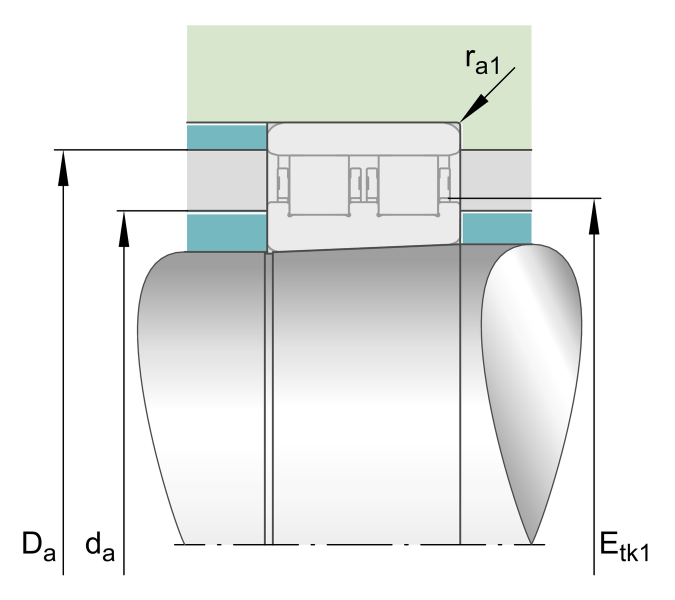

Mounting dimensions
da
105 mm
Diameter shaft shoulder
h12
Diameter shaft shoulder tolerance
Da
129.8 mm
Diameter of housing shoulder
H12
Shoulder diameter outer ring clearance
Etk 1 nom
124.9 mm
Injection pitch diameter min
ra1 max
1.5 mm
Maximum recess radius
