FAG QJ10/530-N2-MPA
Four-Point Contact Ball Bearings

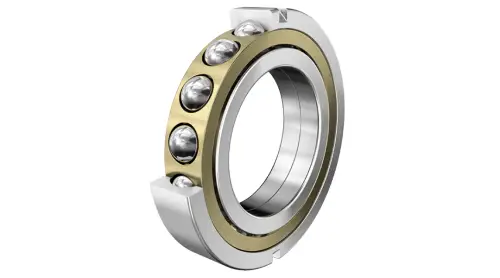

Four point contact bearing QJ10..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

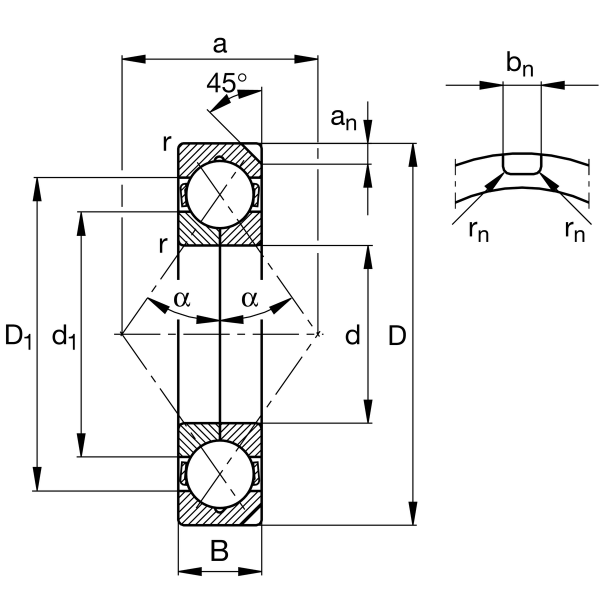

Main Dimensions & Performance Data
d
530 mm
Bore diameter
D
780 mm
Outside diameter
B
112 mm
Width
Cr
1,290,000 N
Basic dynamic load rating, radial
C0r
3,600,000 N
Basic static load rating, radial
Cur
78,000 N
Fatigue load limit, radial
CG
1,330 1/min
Limiting speed
nϑr
520 1/min
Reference speed
≈m
190 kg
Weight
Mounting dimensions
da min
553 mm
Minimum diameter shaft shoulder
da min
757 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum fillet radius
