FAG QJ1080-N2-MPA

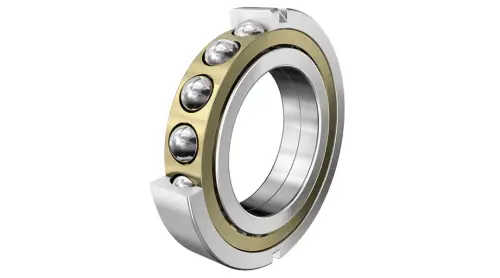

Four-Point Contact Ball Bearings
Four point contact bearing QJ10..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

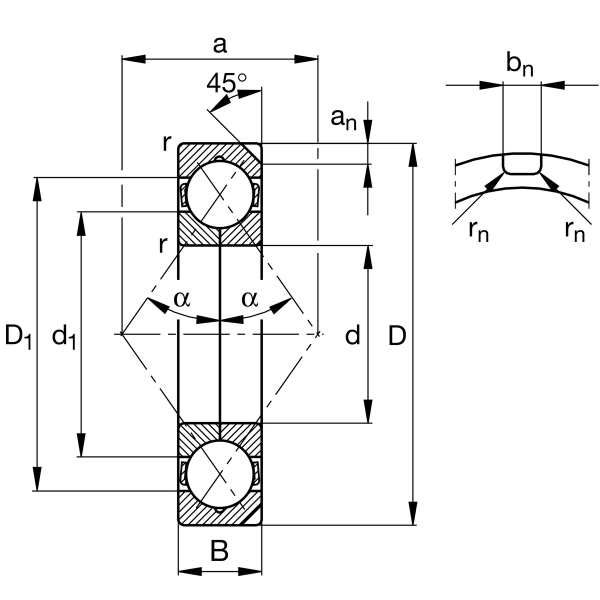

Main Dimensions & Performance Data
d
400 mm
Bore diameter
D
600 mm
Outside diameter
B
90 mm
Width
Cr
880,000 N
Basic dynamic load rating, radial
C0r
2,060,000 N
Basic static load rating, radial
Cur
52,000 N
Fatigue load limit, radial
CG
1,770 1/min
Limiting speed
nϑr
790 1/min
Reference speed
≈m
98.3 kg
Weight

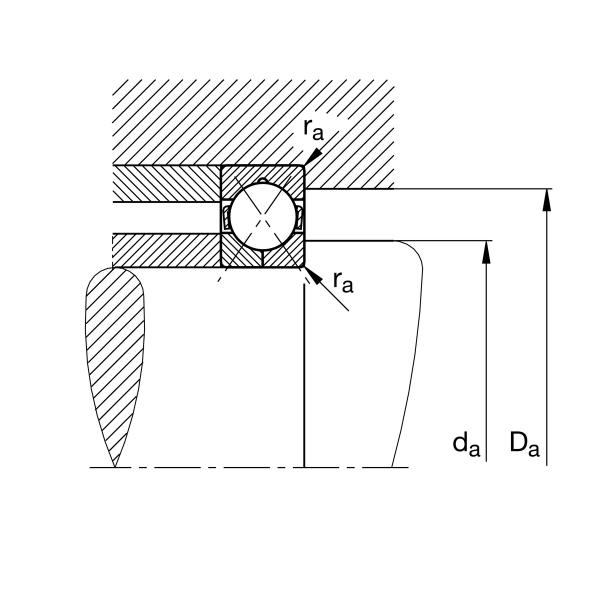

Mounting dimensions
da min
418 mm
Minimum diameter shaft shoulder
da min
582 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius
