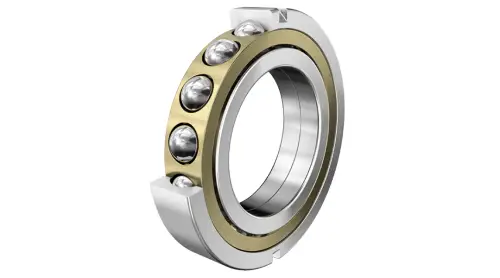

FAG QJ1088-N2-MPA-C3
Four-Point Contact Ball Bearings
Four point contact bearing QJ10..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

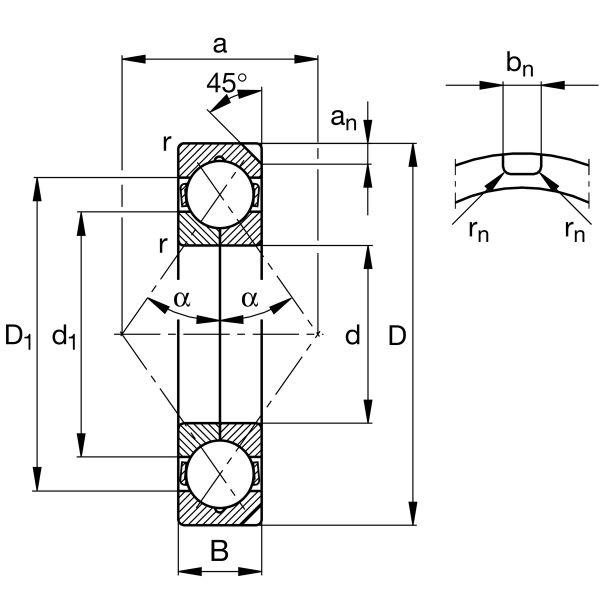

Main Dimensions & Performance Data
d
440 mm
Bore diameter
D
650 mm
Outside diameter
B
94 mm
Width
Cr
970,000 N
Basic dynamic load rating, radial
C0r
2,400,000 N
Basic static load rating, radial
Cur
57,000 N
Fatigue load limit, radial
CG
1,620 1/min
Limiting speed
nϑr
690 1/min
Reference speed
≈m
114 kg
Weight

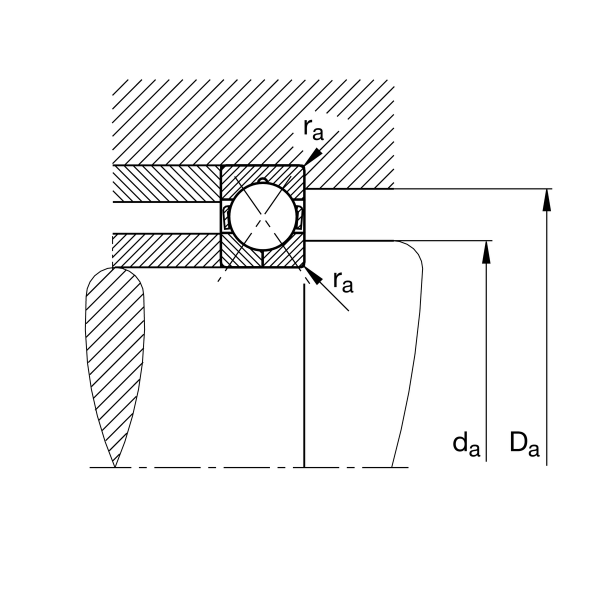

Mounting dimensions
da min
463 mm
Minimum diameter shaft shoulder
da min
627 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum fillet radius
