FAG QJ1256-N2-MPA-C3
Four-Point Contact Ball Bearings

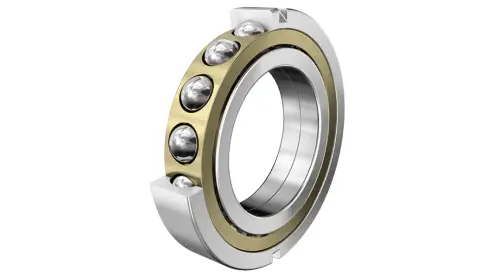

Four point contact bearing QJ12..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

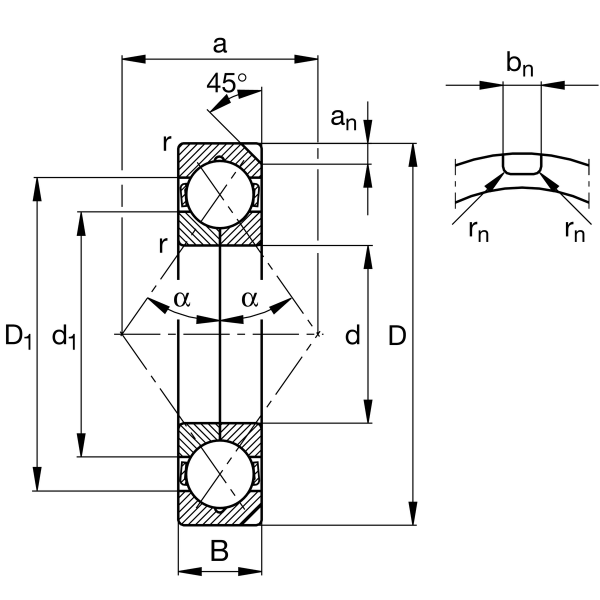

Main Dimensions & Performance Data
d
280 mm
Bore diameter
D
500 mm
Outside diameter
B
90 mm
Width
Cr
790,000 N
Basic dynamic load rating, radial
C0r
1,600,000 N
Basic static load rating, radial
Cur
45,500 N
Fatigue load limit, radial
CG
2,240 1/min
Limiting speed
nϑr
1,110 1/min
Reference speed
≈m
81.8 kg
Weight

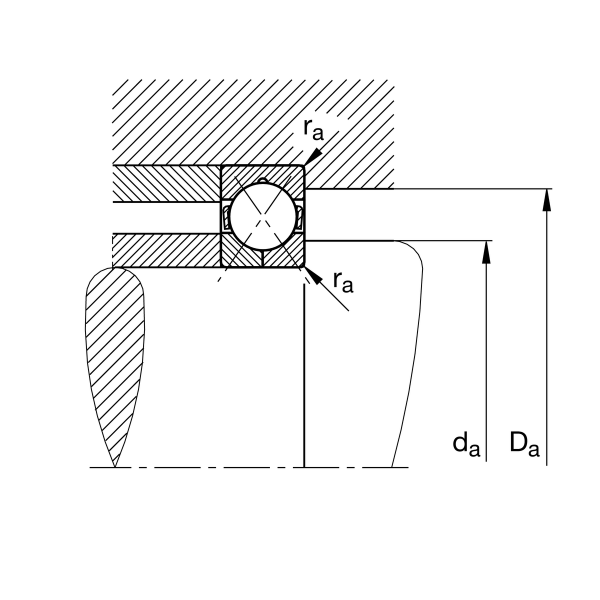

Mounting dimensions
da min
300 mm
Minimum diameter shaft shoulder
da min
480 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius
