FAG QJ1984-N2-MPA
Four-Point Contact Ball Bearings
Four point contact bearing QJ19..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
420 mm
Bore diameter
D
560 mm
Outside diameter
B
65 mm
Width
Cr
620,000 N
Basic dynamic load rating, radial
C0r
1,390,000 N
Basic static load rating, radial
Cur
35,000 N
Fatigue load limit, radial
CG
1,880 1/min
Limiting speed
nϑr
810 1/min
Reference speed
≈m
47.5 kg
Weight

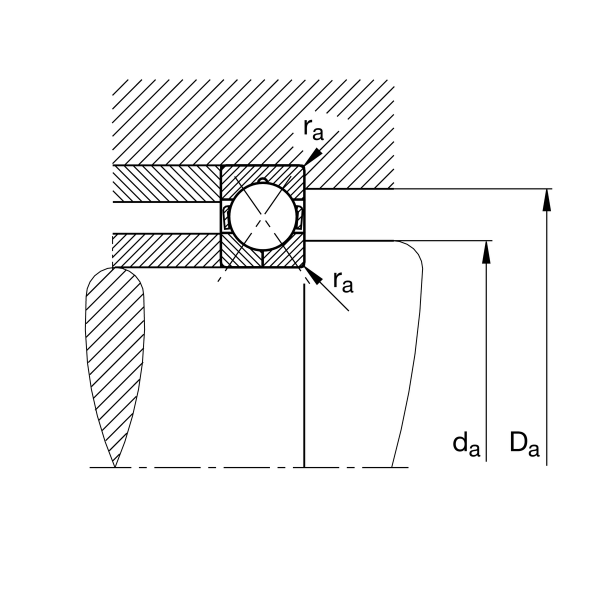

Mounting dimensions
da min
434.6 mm
Minimum diameter shaft shoulder
da min
545.4 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum fillet radius
