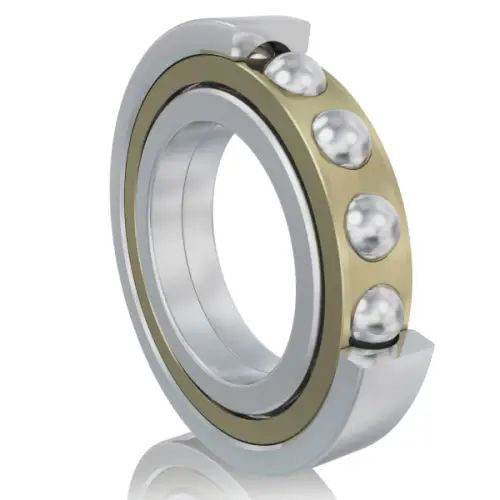

FAG QJ207-XL-MPA-C3
Four-Point Contact Ball Bearings
Four point contact bearing QJ2..-XL-MPA, X-life, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
72 mm
Outside diameter
B
17 mm
Width
Cr
45,000 N
Basic dynamic load rating, radial
C0r
35,500 N
Basic static load rating, radial
Cur
2,470 N
Fatigue load limit, radial
CG
19,800 1/min
Limiting speed
nϑr
8,500 1/min
Reference speed
≈m
342 g
Weight
Mounting dimensions
da min
42 mm
Minimum diameter shaft shoulder
da min
65 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
