FAG QJ212-XL-N-MPA
Four-Point Contact Ball Bearings
Four point contact bearing QJ2..-XL-N-MPA, X-life, ring groove, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
110 mm
Outside diameter
B
22 mm
Width
Cr
94,000 N
Basic dynamic load rating, radial
C0r
87,000 N
Basic static load rating, radial
Cur
6,100 N
Fatigue load limit, radial
CG
12,300 1/min
Limiting speed
nϑr
5,400 1/min
Reference speed
≈m
0.945 kg
Weight

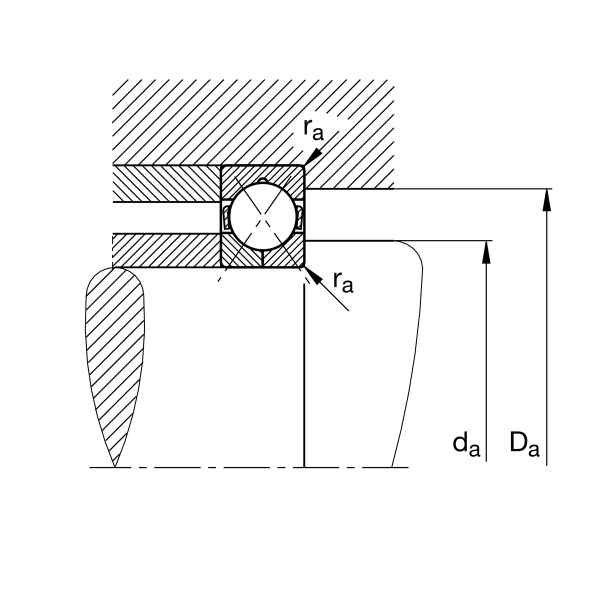

Mounting dimensions
da min
69 mm
Minimum diameter shaft shoulder
da min
101 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum fillet radius
