FAG QJ303-XL-MPA
Four-Point Contact Ball Bearings

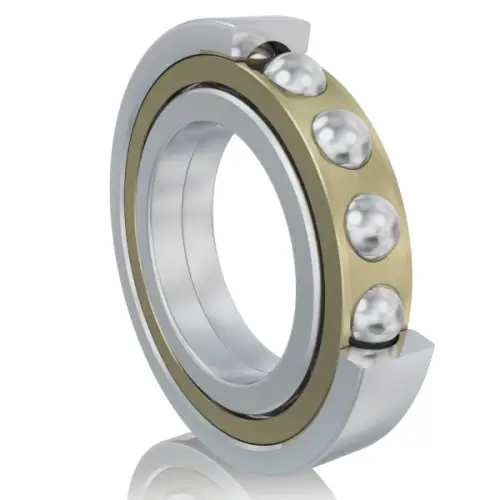

Four point contact bearing QJ3..-XL-MPA, X-life, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
47 mm
Outside diameter
B
14 mm
Width
Cr
24,500 N
Basic dynamic load rating, radial
C0r
15,100 N
Basic static load rating, radial
Cur
1,130 N
Fatigue load limit, radial
CG
32,500 1/min
Limiting speed
nϑr
12,000 1/min
Reference speed
≈m
0.14 kg
Weight

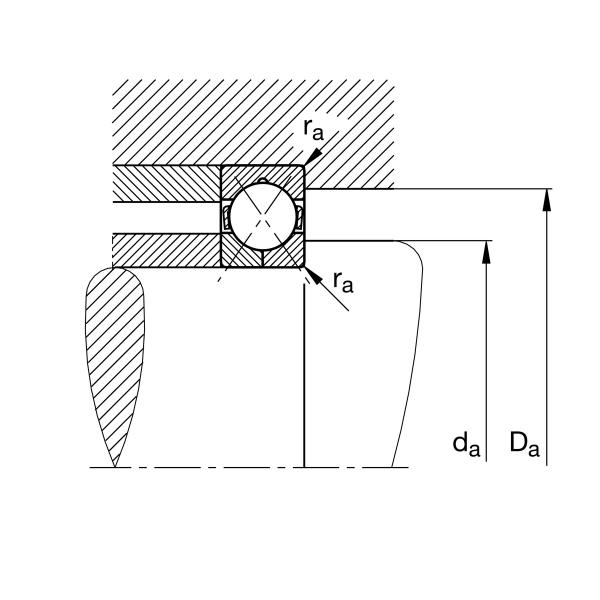

Mounting dimensions
da min
22.6 mm
Minimum diameter shaft shoulder
da min
41.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
