FAG QJ304-XL-MPA
Four-Point Contact Ball Bearings

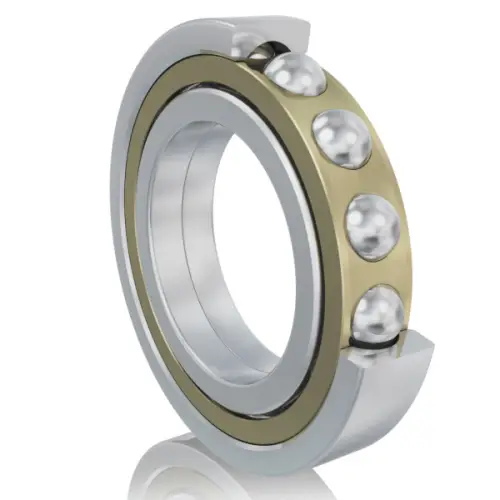

Four point contact bearing QJ3..-XL-MPA, X-life, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

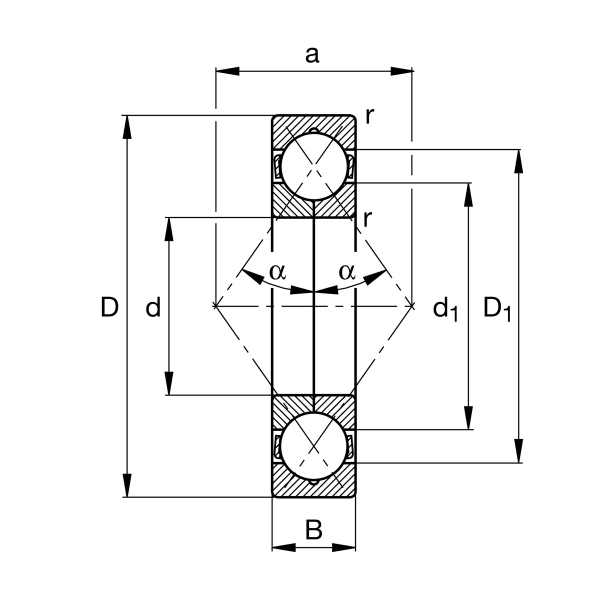

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
52 mm
Outside diameter
B
15 mm
Width
Cr
31,000 N
Basic dynamic load rating, radial
C0r
19,600 N
Basic static load rating, radial
Cur
1,360 N
Fatigue load limit, radial
CG
28,500 1/min
Limiting speed
nϑr
10,700 1/min
Reference speed
≈m
0.175 kg
Weight

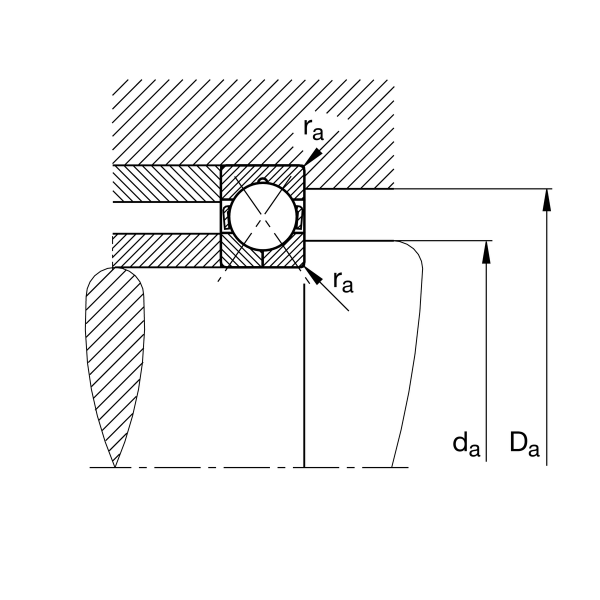

Mounting dimensions
da min
27 mm
Minimum diameter shaft shoulder
da min
45 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
