FAG QJ306-XL-TVP
Four-Point Contact Ball Bearings
Four point contact bearing QJ3..-XL-TVP, X-life, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

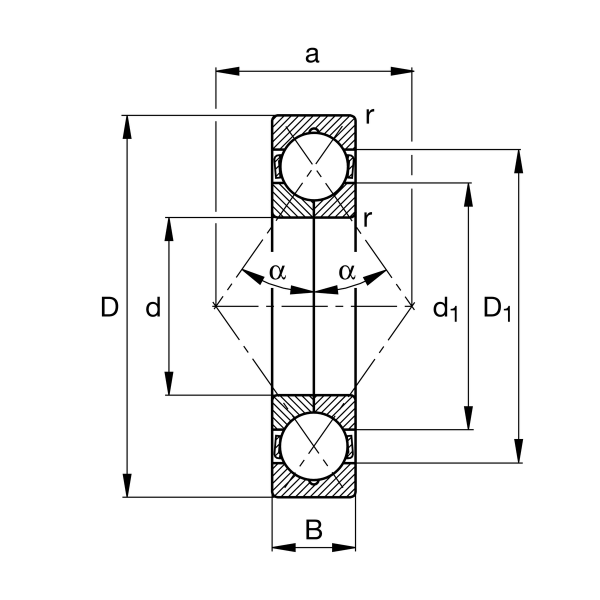

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
72 mm
Outside diameter
B
19 mm
Width
Cr
61,000 N
Basic dynamic load rating, radial
C0r
43,000 N
Basic static load rating, radial
Cur
3,000 N
Fatigue load limit, radial
CG
13,100 1/min
Limiting speed
nϑr
7,600 1/min
Reference speed
≈m
366 g
Weight

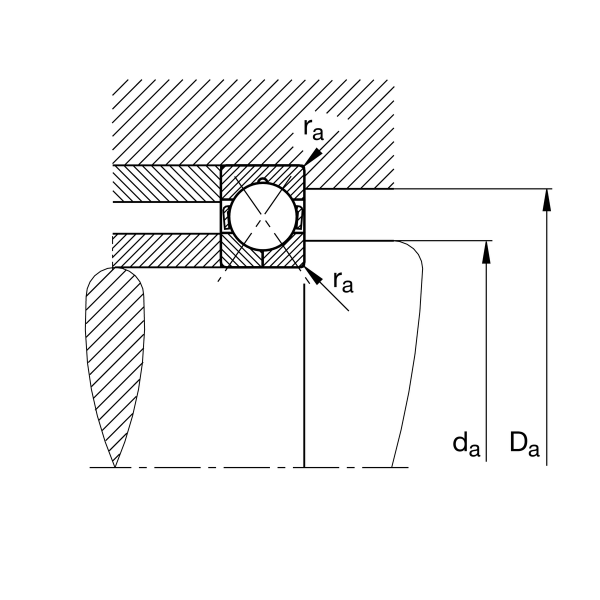

Mounting dimensions
da min
37 mm
Minimum diameter shaft shoulder
da min
65 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
