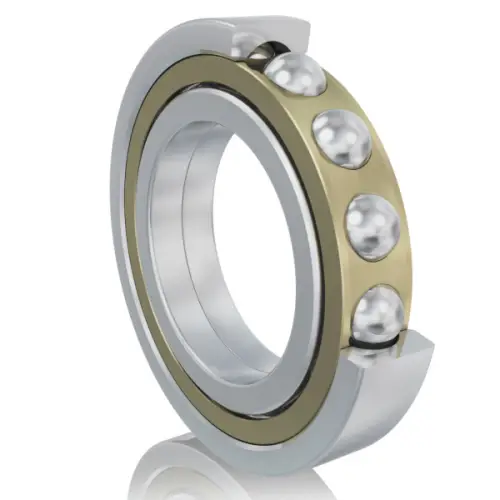

FAG QJ330-N2-MPA-J30PC-C3
Four-Point Contact Ball Bearings
Four point contact bearing QJ3..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

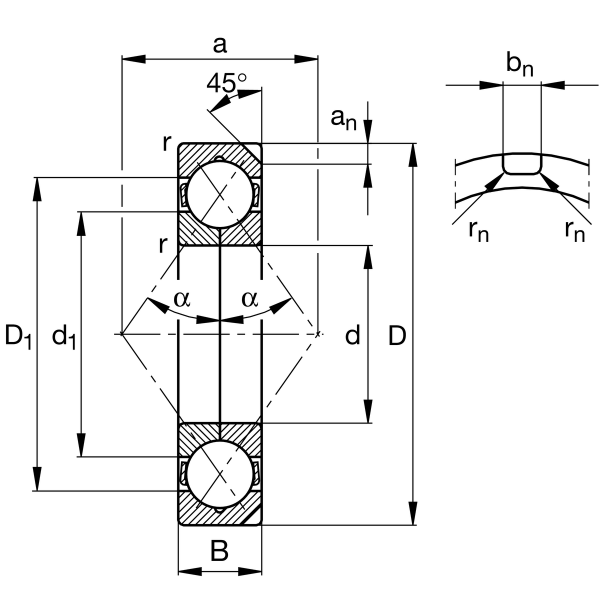

Main Dimensions & Performance Data
d
150 mm
Bore diameter
D
320 mm
Outside diameter
B
65 mm
Width
Cr
510,000 N
Basic dynamic load rating, radial
C0r
730,000 N
Basic static load rating, radial
Cur
26,000 N
Fatigue load limit, radial
CG
3,650 1/min
Limiting speed
nϑr
1,870 1/min
Reference speed
≈m
28 kg
Weight

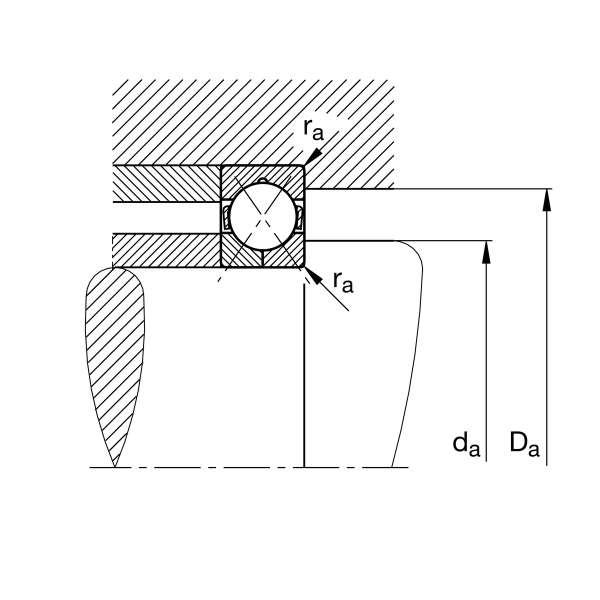

Mounting dimensions
da min
167 mm
Minimum diameter shaft shoulder
da min
303 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum fillet radius
