FAG QJ332-N2-MPA-J30PC-C3
Four-Point Contact Ball Bearings

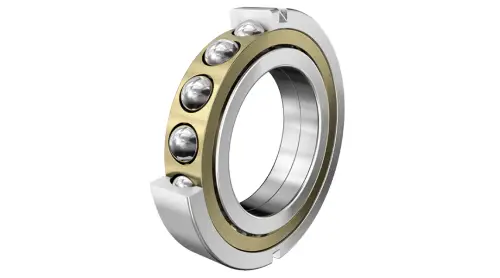

Four point contact bearing QJ3..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

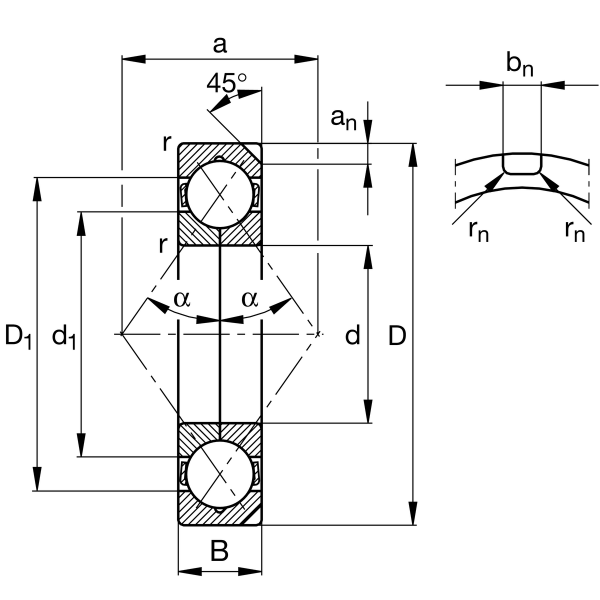

Main Dimensions & Performance Data
d
160 mm
Bore diameter
D
340 mm
Outside diameter
B
68 mm
Width
Cr
580,000 N
Basic dynamic load rating, radial
C0r
870,000 N
Basic static load rating, radial
Cur
30,000 N
Fatigue load limit, radial
CG
3,350 1/min
Limiting speed
nϑr
1,680 1/min
Reference speed
≈m
32.8 kg
Weight

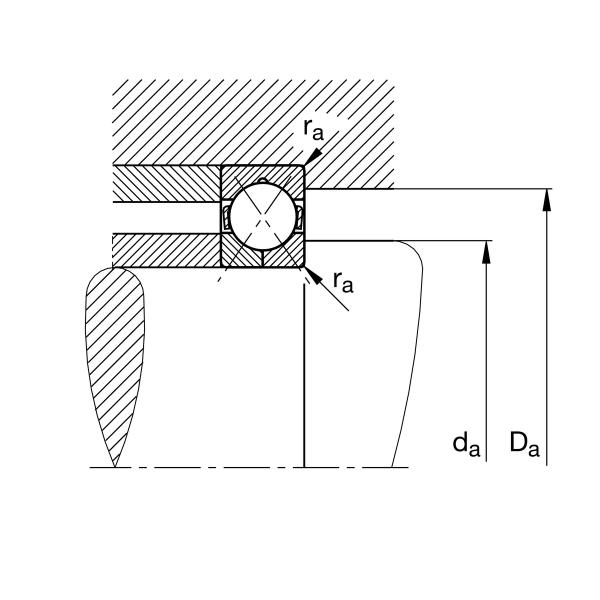

Mounting dimensions
da min
177 mm
Minimum diameter shaft shoulder
da min
323 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum fillet radius
