FAG VCM7013-EDLR-T-P4S-UL-XL

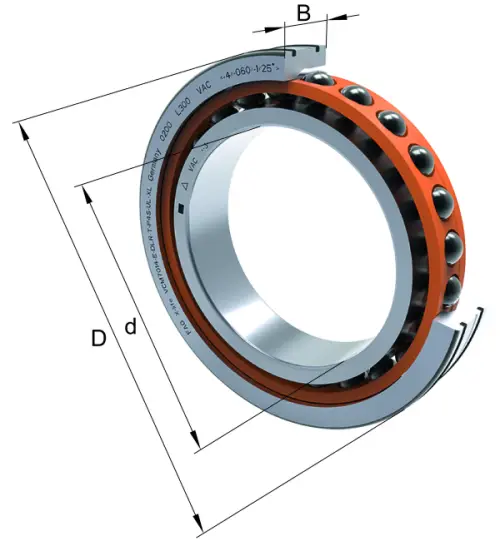

High speed spindle bearing VCM70..-EDLR, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, with ceramic balls, rings made from Vacrodur, restricted tolerances, for direct oil feed via outer ring, with inserted O rings
(BRAND)：FAG
(Availability)：In Stock

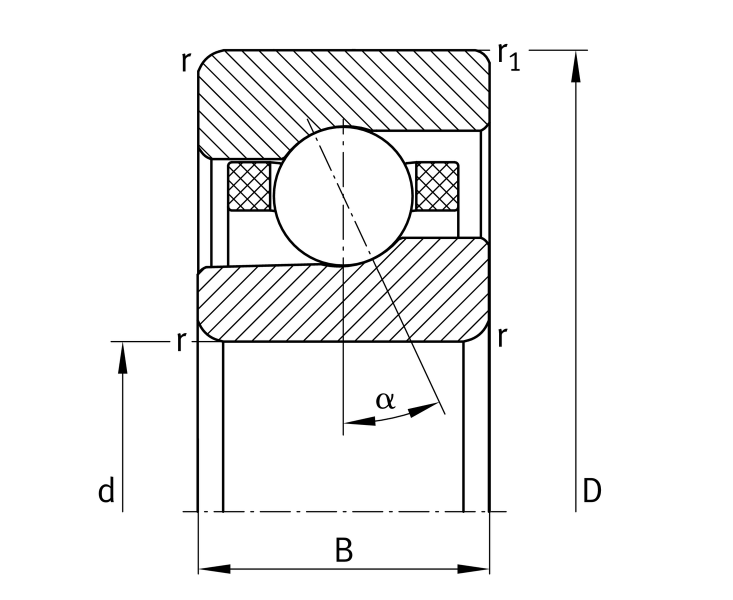

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
100 mm
Outside diameter
B
18 mm
Width
Cr
46,000 N
Basic dynamic load rating, radial
C0r
15,500 N
Basic static load rating, radial
Cur
790 N
Fatigue load limit, radial
nG Grease
24,000 1/min
Limiting speed for grease lubrication
nG Oil
36,000 1/min
Limiting speed for oil lubrication
≈m
0.41 kg
Weight

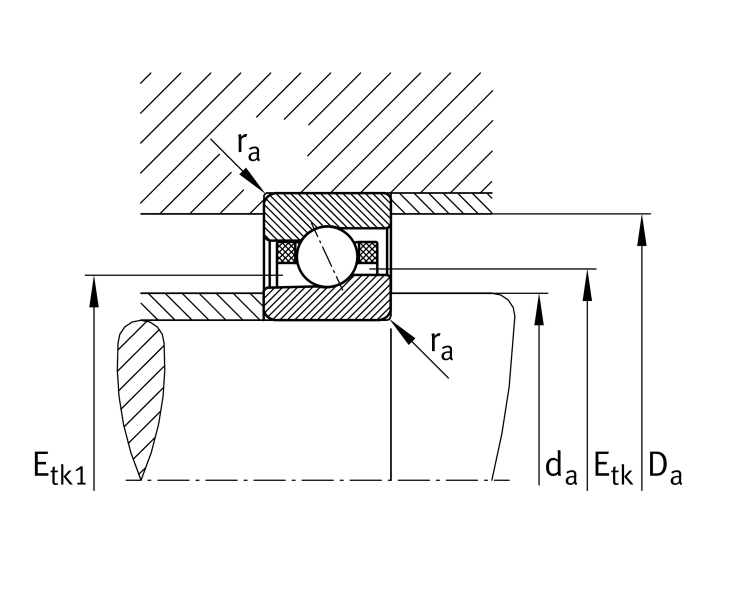

Mounting dimensions
da
72 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
93 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius

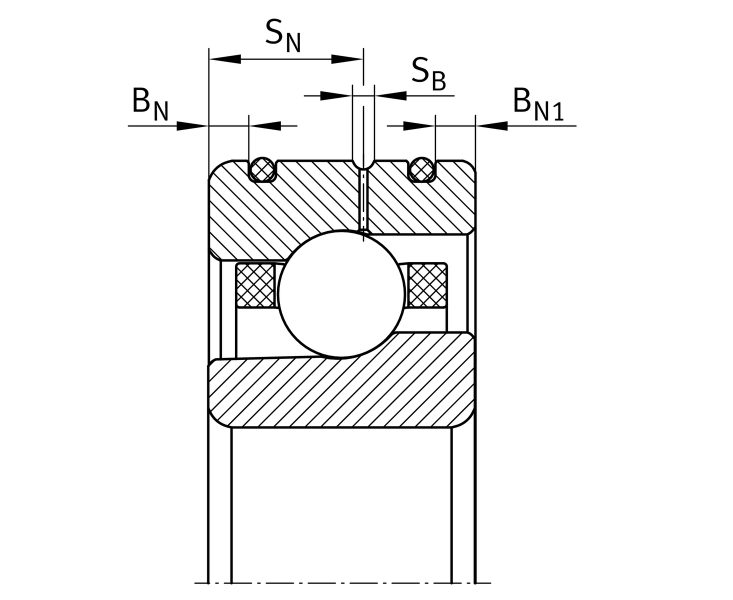

BN
2.8 mm
Distance ring grooves
BN1
2.8 mm
Distance ring grooves
SN
10.4 mm
Distance to lubrication hole
SB
1.4 mm
Width of lubricating groove
a
28.2 mm
Distance between the apexes of the pressure cones
