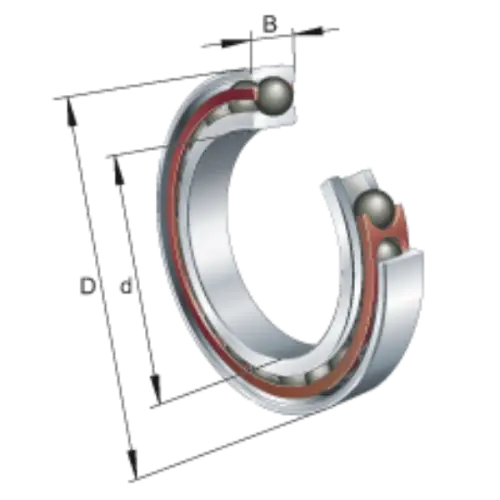

FAG VCM7019-C-T-P4S-UL-XL
High speed spindle bearing VCM70..-C, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, with ceramic balls, rings made from Vacrodur, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock

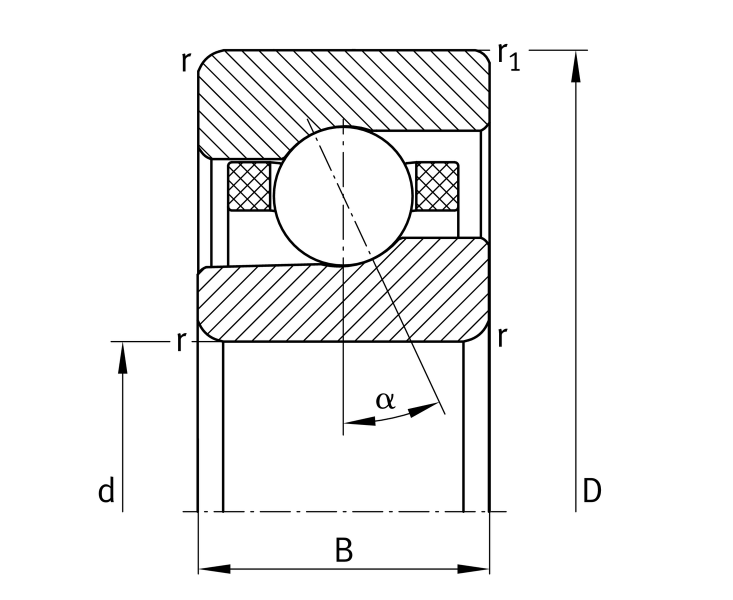

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
145 mm
Outside diameter
B
24 mm
Width
Cr
101,000 N
Basic dynamic load rating, radial
C0r
41,500 N
Basic static load rating, radial
Cur
1,930 N
Fatigue load limit, radial
nG Grease
17,000 1/min
Limiting speed for grease lubrication
nG Oil
26,000 1/min
Limiting speed for oil lubrication
≈m
1.2 kg
Weight

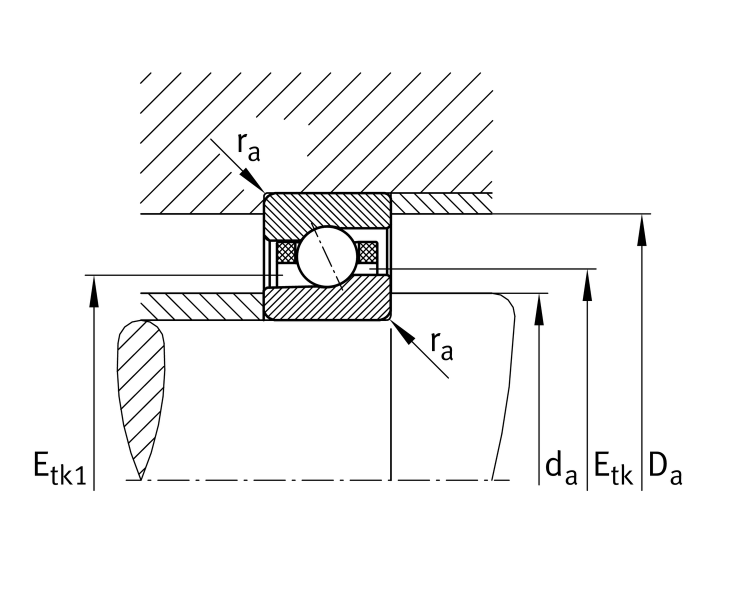

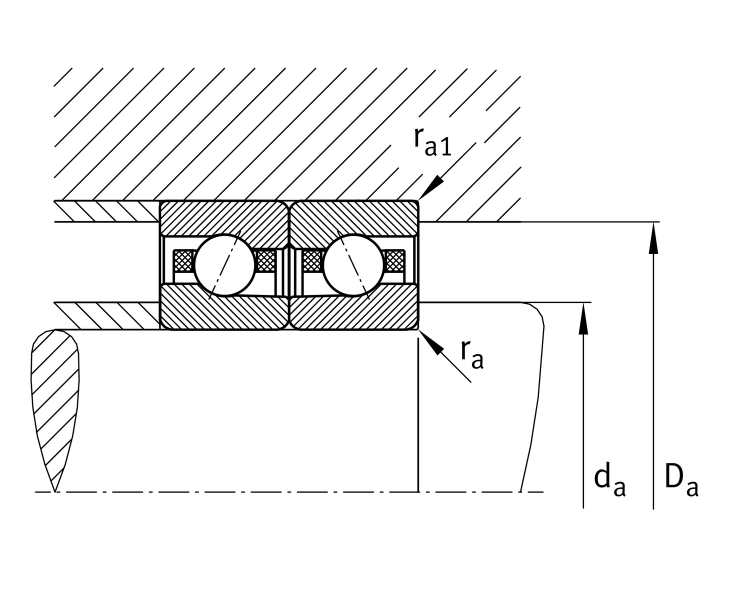

Mounting dimensions
da
105 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
136 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1.5 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
Etk min
113.3 mm
Minimum diameter injection pitch
Etk max
116.7 mm
Maximum diameter injection pitch
Etk1 min
109.1 mm
Minimum diameter injection pitch
Etk1 max
116.7 mm
Maximum diameter injection pitch
a
30.3 mm
Distance between the apexes of the pressure cones
