FAG VCM7022-C-T-P4S-UL-XL
Radial Super Precision Bearings
High speed spindle bearing VCM70..-C, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, with ceramic balls, rings made from Vacrodur, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

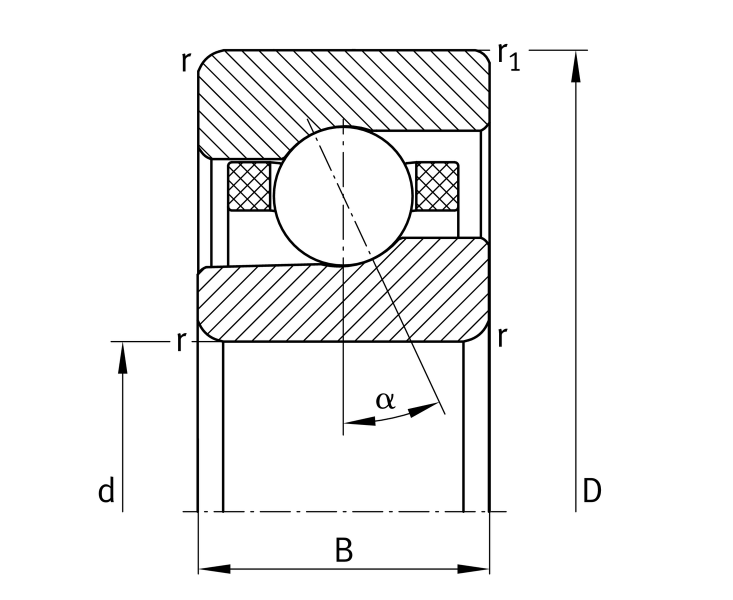

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
170 mm
Outside diameter
B
28 mm
Width
Cr
129,000 N
Basic dynamic load rating, radial
C0r
55,000 N
Basic static load rating, radial
Cur
2,390 N
Fatigue load limit, radial
nG Grease
15,000 1/min
Limiting speed for grease lubrication
nG Oil
22,000 1/min
Limiting speed for oil lubrication
≈m
2.09 kg
Weight

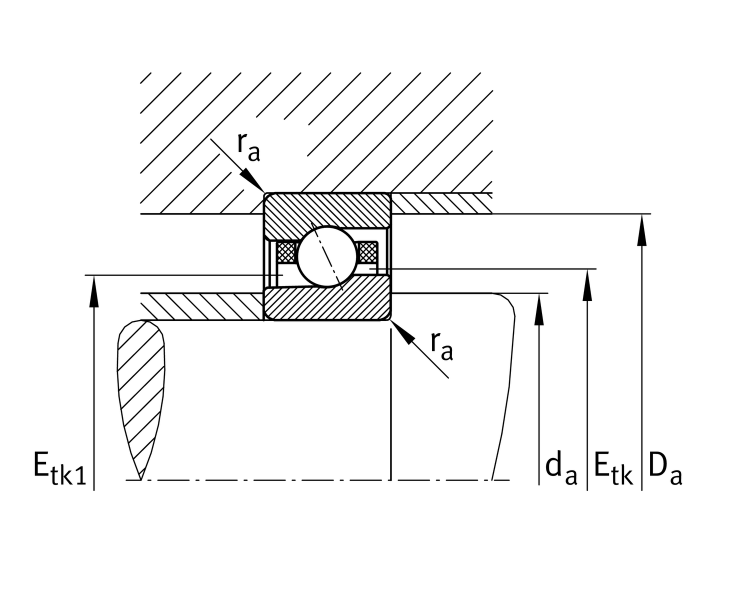

Mounting dimensions
da
121 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
159 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
Etk min
132.4 mm
Minimum diameter injection pitch
Etk max
136.4 mm
Maximum diameter injection pitch
Etk1 min
127.6 mm
Minimum diameter injection pitch
Etk1 max
136.4 mm
Maximum diameter injection pitch
a
35.4 mm
Distance between the apexes of the pressure cones
