FAG VCM71915-E-T-P4S-UL-XL
High speed spindle bearing VCM719..-E, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, with ceramic balls, rings made from Vacrodur, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock

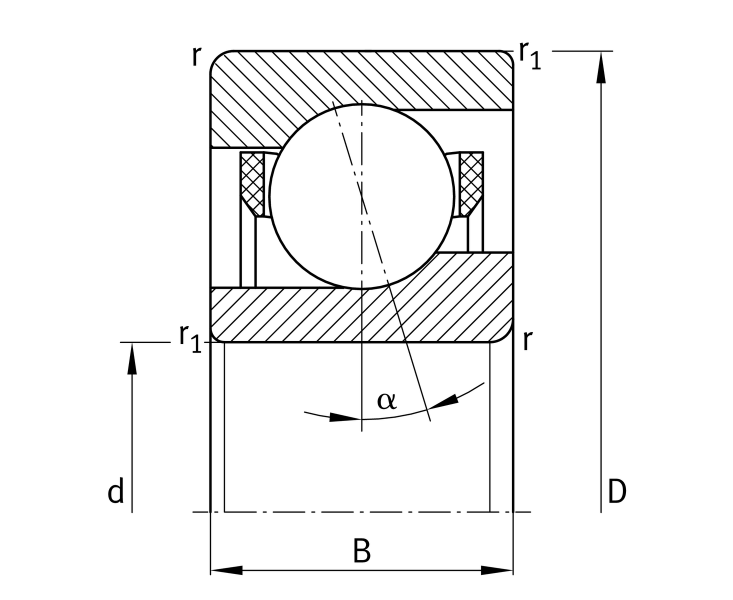

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
105 mm
Outside diameter
B
16 mm
Width
Cr
63,000 N
Basic dynamic load rating, radial
C0r
21,100 N
Basic static load rating, radial
Cur
1,080 N
Fatigue load limit, radial
nG Grease
22,000 1/min
Limiting speed for grease lubrication
nG Oil
34,000 1/min
Limiting speed for oil lubrication
≈m
0.27 kg
Weight

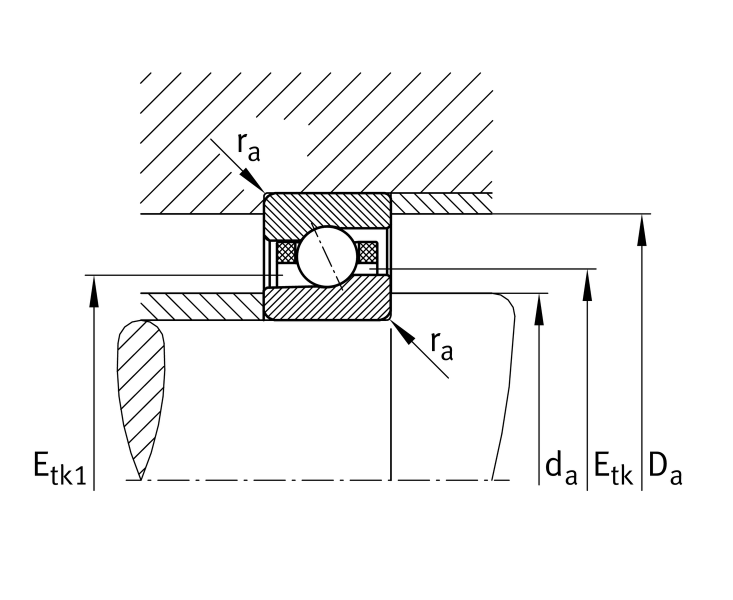

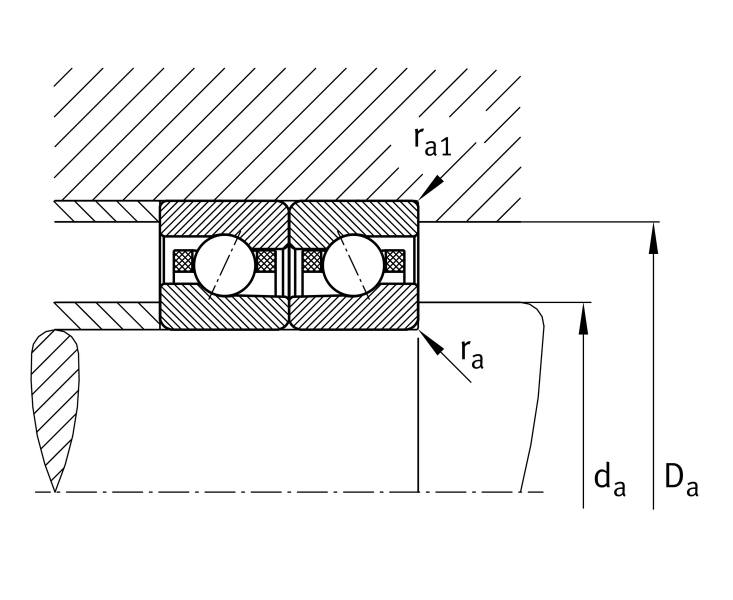

Mounting dimensions
da
81 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
99.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.3 mm
Maximum recess radius
Etk min
84.3 mm
Minimum diameter injection pitch
Etk max
87.1 mm
Maximum diameter injection pitch
Etk1 min
80.7 mm
Minimum diameter injection pitch
Etk1 max
87.1 mm
Maximum diameter injection pitch
a
29 mm
Distance between the apexes of the pressure cones
