FAG VCM71918-C-T-P4S-UL-XL
High speed spindle bearing VCM719..-C, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, with ceramic balls, rings made from Vacrodur, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock

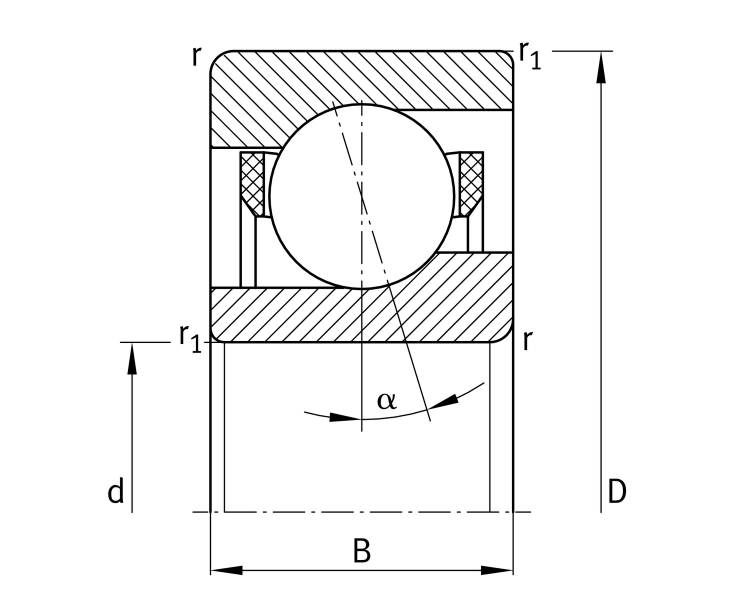

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
125 mm
Outside diameter
B
18 mm
Width
Cr
79,000 N
Basic dynamic load rating, radial
C0r
28,000 N
Basic static load rating, radial
Cur
1,390 N
Fatigue load limit, radial
nG Grease
20,000 1/min
Limiting speed for grease lubrication
nG Oil
30,000 1/min
Limiting speed for oil lubrication
≈m
0.45 kg
Weight

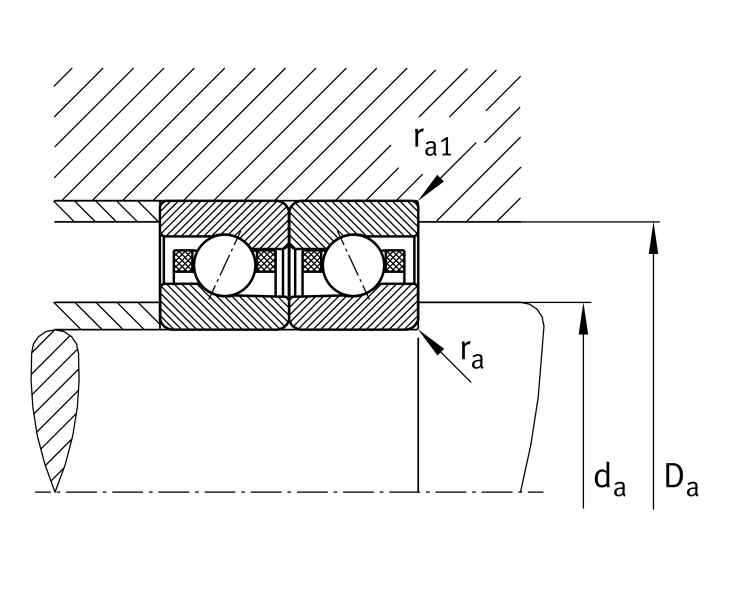

Mounting dimensions
da
97 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
119 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius

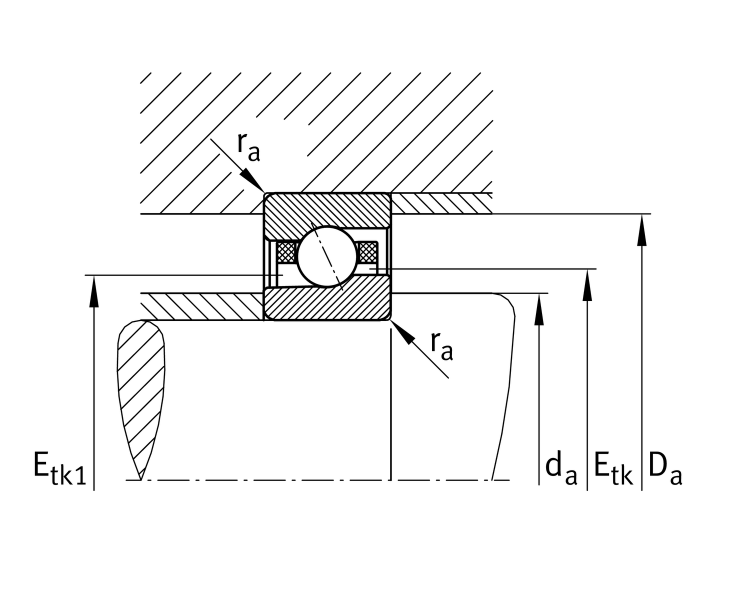

Etk min
101.3 mm
Minimum diameter injection pitch
Etk max
104.4 mm
Maximum diameter injection pitch
Etk1 min
97.4 mm
Minimum diameter injection pitch
Etk1 max
104.4 mm
Maximum diameter injection pitch
a
25.4 mm
Distance between the apexes of the pressure cones
