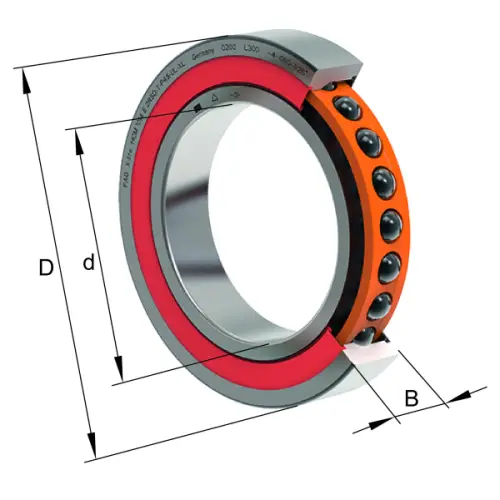

FAG VCM71924-C-2RSD-T-P4S-UL-XL
High speed spindle bearing VCM719..-C-2RSD, adjusted, in pairs or sets, contact angle u03B1 = 17u00B0, with ceramic balls, rings made from Vacrodur, lip seals on both sides, non-contact, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

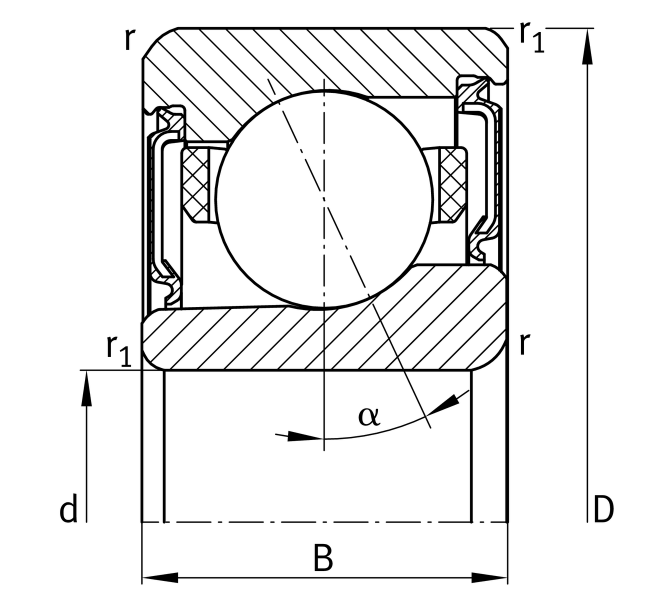

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
165 mm
Outside diameter
B
22 mm
Width
Cr
119,000 N
Basic dynamic load rating, radial
C0r
46,500 N
Basic static load rating, radial
Cur
1,990 N
Fatigue load limit, radial
nG Grease
15,000 1/min
Limiting speed for grease lubrication
≈m
1.16 kg
Weight

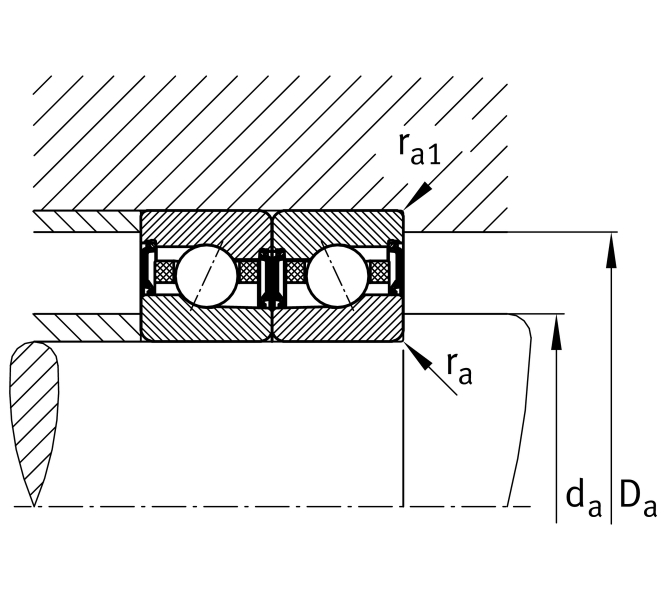

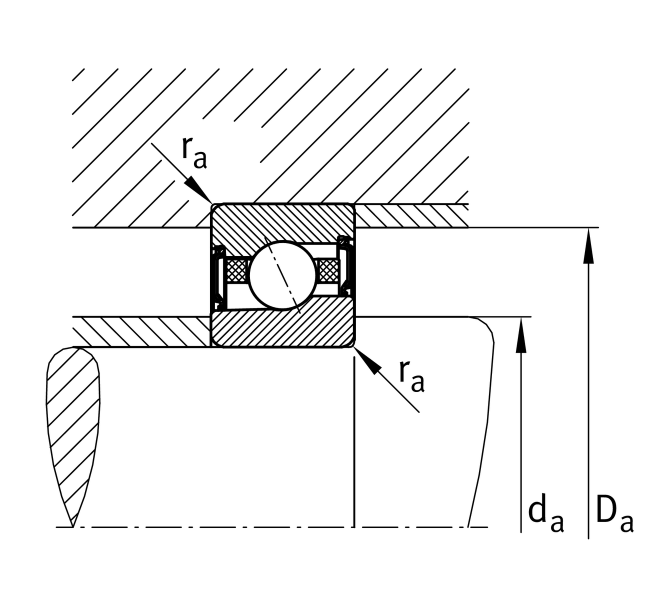

Mounting dimensions
da
128 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
157 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
0.6 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
a
32.8 mm
Distance between the apexes of the pressure cones
