IKO BHA1820ZOH
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty
IKO BHA1820ZOH Shell Needle Roller Bearing
The IKO BHA1820ZOH is part of the IKO Needle Roller Bearings series and is listed under the brand path Brand > IKO > Needle Roller Bearings. The product data identifies it as a shell needle roller bearing with an inch designation, caged internal structure, and chromium molybdenum steel construction.
What bearing type and structure are specified for the BHA1820ZOH?
The supplied data lists the bearing type as Needle Roller Bearings and the internal structure as Cage Type. It is also described as a shell needle roller bearing.

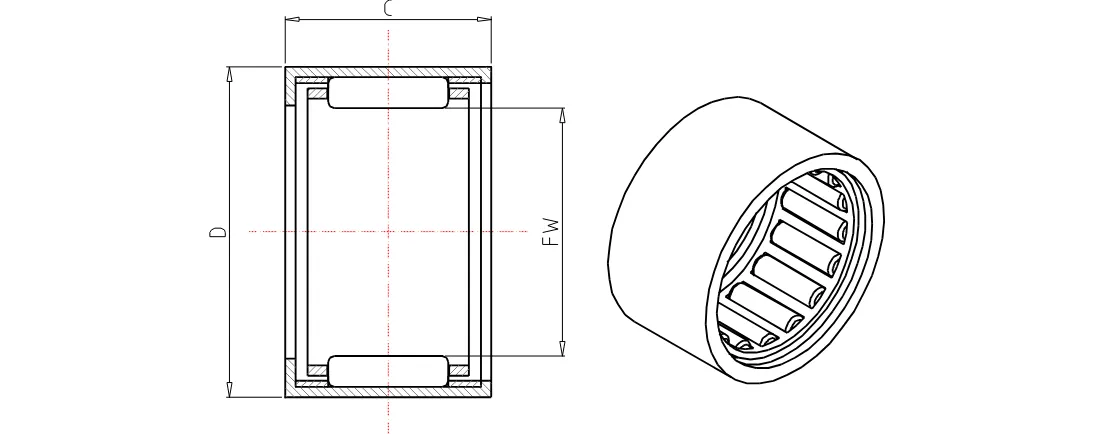

BHA1820ZOH Dimensions and Mass
The recorded dimensions for the BHA1820ZOH are a shaft diameter and inscribed circle diameter of 28.575 mm, an outer diameter of 38.100 mm, and a width of 31.75 mm. The listed mass is 73.5 g.
What are the stated dimensional values?
- Shaft diameter: 28.575 mm
- Inscribed circle diameter: 28.575 mm
- Outer diameter: 38.100 mm
- Width: 31.75 mm
- Mass: 73.5 g
BHA1820ZOH Load Ratings and Material
The product data specifies a basic dynamic load rating of 37,100 N and a basic static load rating of 61,100 N. The bearing material is listed as Chromium Molybdenum Steel, and the product is described as heavy duty.
What material and load-rating information is provided?
The BHA1820ZOH uses Chromium Molybdenum Steel according to the supplied product data. Its stated basic dynamic load rating is 37,100 N, and its stated basic static load rating is 61,100 N. The order number shown in the detailed data is BHA1820Z.
