IKO TAF405030/SG
Machined Type Needle Roller Bearings, High Carbon Steel, With Solid Lube
TAF405030/SG Is an IKO Needle Roller Bearing
The TAF405030/SG is part of the IKO Needle Roller Bearings series. The supplied product data identifies it as a machined type needle roller bearing with a cage-type internal structure and solid lube.
What are the basic identification details?
- Model: TAF405030/SG
- Brand: IKO
- Series: Needle Roller Bearings
- Bearing type: Needle Roller Bearings
- Internal structure: Cage Type

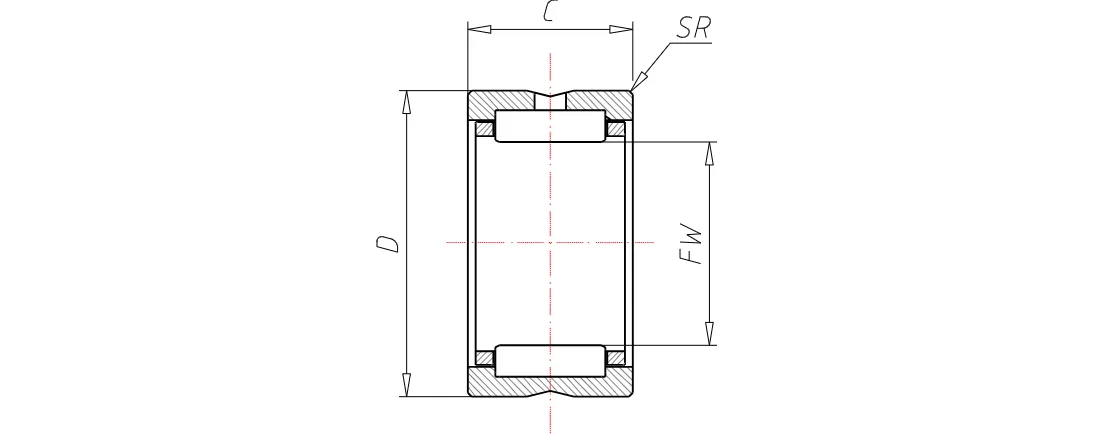

TAF405030/SG Has Recorded Dimensions and Material Details
The bearing data lists a shaft diameter and inner diameter of 40 mm, an outer diameter of 50 mm, and a width of 30 mm. The stated bearing material is high carbon chrome steel, while the title information also refers to high carbon steel construction with solid lube.
What dimensions and mass are provided for this bearing?
- Inner diameter: 40 mm
- Shaft diameter: 40 mm
- Outer diameter: 50 mm
- Width: 30 mm
- rs minimum: 0.3 mm
- Da maximum: 48.0 mm
- Mass: 130.0 g
TAF405030/SG Includes Listed Load Rating Values
The supplied product data provides basic load ratings for this IKO needle roller bearing. These values can be used with the bearing dimensions when reviewing or comparing the specified part data.
What load ratings are recorded in the product data?
- Basic dynamic load rating: 42300 N
- Basic static load rating: 86200 N
The bearing is described using the order number TAF405030/SG and is categorized under Brand > IKO > Needle Roller Bearings.
