IKO KT121610EGB2
Needle Roller Cage for Engine, High Carbon Steel, B2 Tolerance of Roller Dia
IKO KT121610EGB2 Needle Roller Bearing Introduction
The KT121610EGB2 is an IKO needle roller bearing in the Needle Roller Bearings product series. Product information identifies it as a needle roller cage with a carbon cage type internal structure.
What type of bearing is the KT121610EGB2?
The listed bearing type is Needle Roller Bearings, and the internal structure is listed as Carbon Cage Type.

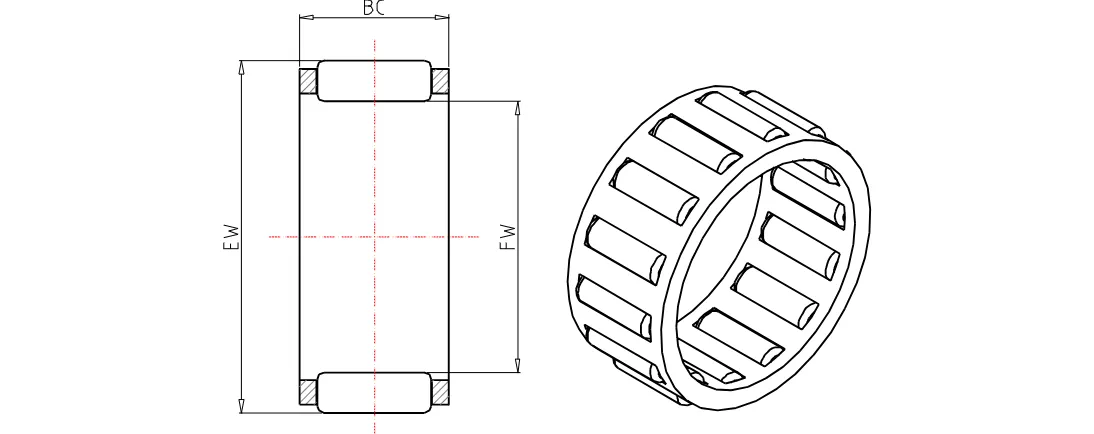

KT121610EGB2 Dimensions and Product Specifications
- Order Number: KT121610EG
- Shaft Diameter: 12 mm
- Inner Diameter: 12 mm
- Outer Diameter: 16 mm
- Width: 10.0 mm
- Mass: 3.8 g
What are the bore, outside diameter, and width?
The KT121610EGB2 has an inner diameter of 12 mm, an outer diameter of 16 mm, and a width of 10.0 mm.
Material and Load Rating Details for KT121610EGB2
The product data lists the bearing material as Carbon Steel. The detailed title also describes the item as a needle roller cage made of high carbon steel and references B2 tolerance of roller diameter.
- Basic dynamic load rating: 5650 N
- Basic static load rating: 5890 N
What load ratings and material information are provided?
The supplied data lists a basic dynamic load rating of 5650 N and a basic static load rating of 5890 N, with the bearing material identified as Carbon Steel.
