IKO BHAM1312
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
(BRAND)：IKO
(Availability)：In Stock
Order Number
BHAM1312
Shaft Diameter
20.638
mm
Inscribed circle diameter
20.638
mm
Outer Diameter
28.575
mm
Width
19.05
mm
Maximum width
0.0
mm
Maximum width
1
mm
Basic dynamic load rating
17300
N
Basic static load rating
24400
N
Mass
30.5
g

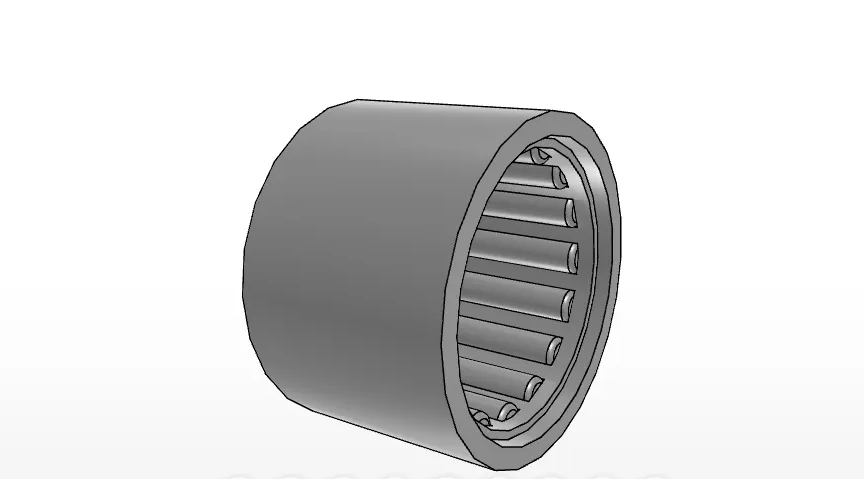

BHAM1312 IKO Shell Needle Roller Bearing
The BHAM1312 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. It uses a cage-type internal structure and a closed-end design.
What are the basic identification details for BHAM1312?
- Model: BHAM1312
- Brand: IKO
- Series: Needle Roller Bearings
- Bearing type: Shell needle roller bearing
- Internal structure: Cage type

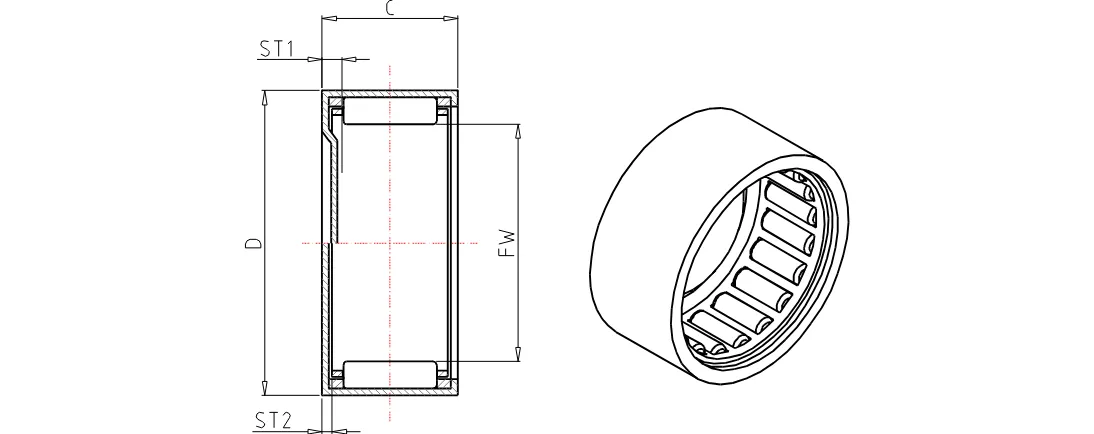

BHAM1312 Dimensions and Material Specifications
The supplied specifications list the bearing dimensions and construction material for the BHAM1312. The design is inch-based and made from chromium molybdenum steel according to the product data.
What dimensions and material are recorded for this bearing?
- Shaft diameter: 20.638 mm
- Inscribed circle diameter: 20.638 mm
- Outer diameter: 28.575 mm
- Width: 19.05 mm
- Material: Chromium molybdenum steel
- Mass: 30.5 g
BHAM1312 Load Rating Information
The product data provides basic load ratings for the BHAM1312 caged shell needle roller bearing. These values can be used when comparing the listed bearing against the specified technical requirements.
What load ratings are provided for BHAM1312?
- Basic dynamic load rating: 17,300 N
- Basic static load rating: 24,400 N
The supplied product title also identifies the bearing as heavy duty and closed end.
