IKO BHAM1412
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End

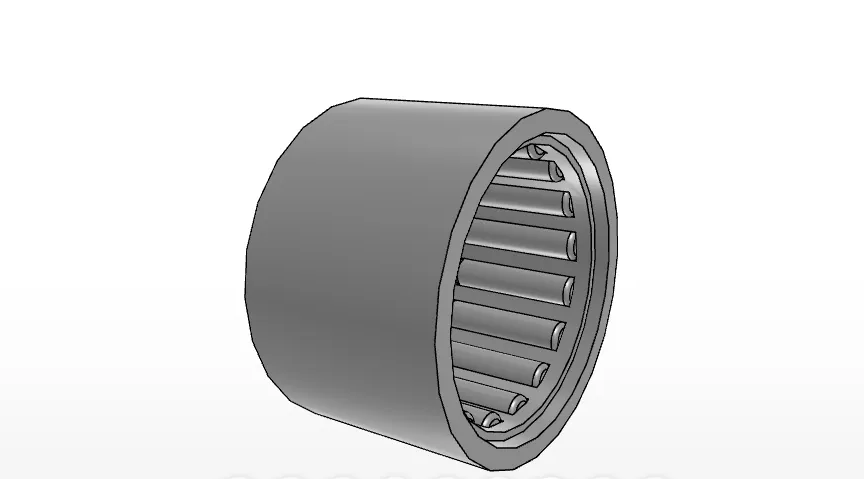

IKO BHAM1412 Shell Needle Roller Bearing Introduction
What type of bearing is the BHAM1412?
The IKO BHAM1412 is part of the Needle Roller Bearings product series and is listed as a shell needle roller bearing. It uses a cage type internal structure and has a closed end design.
- Brand: IKO
- Model: BHAM1412
- Series: Needle Roller Bearings
- Configuration: shell type, caged, closed end

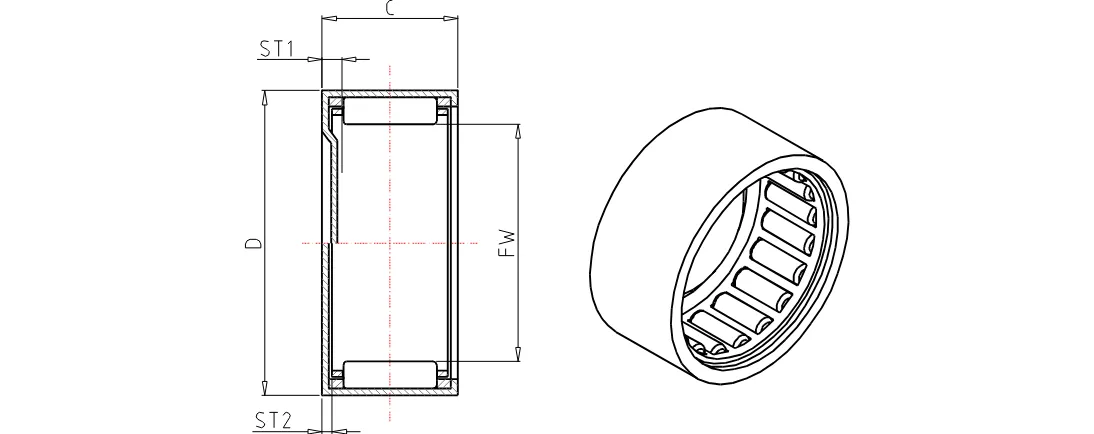

BHAM1412 Dimensions and Material Specifications
What dimensions and material are provided for this bearing?
The supplied product data lists the BHAM1412 with an inch-based shaft diameter and inscribed circle diameter of 22.225 mm, an outer diameter of 30.162 mm, and a width of 19.05 mm. The bearing material is listed as chromium molybdenum steel.
- Shaft / inscribed circle diameter: 22.225 mm
- Outer diameter: 30.162 mm
- Width: 19.05 mm
- Mass: 32.5 g
Published Load Ratings for the IKO BHAM1412
What load rating information is available?
The product data provides a basic dynamic load rating of 18,000 N and a basic static load rating of 26,100 N for the BHAM1412. Additional supplied values include a listed maximum width entry of 3.4 mm and a second maximum width entry of 0 mm.
Use these published values when comparing the BHAM1412 with other IKO needle roller bearings; application suitability should be checked against the selected equipment requirements.
