IKO BHAM1416
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End

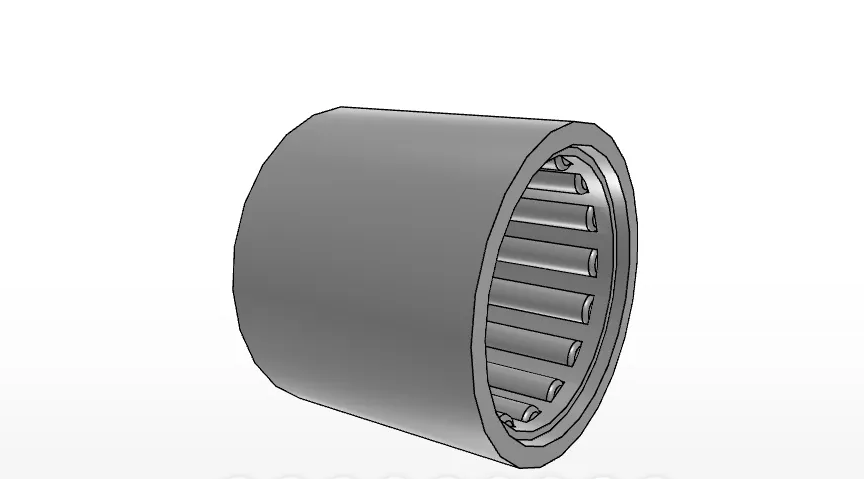

IKO BHAM1416 Shell Needle Roller Bearing Introduction
The BHAM1416 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. It is an inch, caged, closed-end bearing described as heavy duty and made of chromium molybdenum steel. Order number BHAM1416 corresponds to a bearing with an inscribed circle diameter and shaft diameter of 22.225 mm.
What are the basic identifying details of the BHAM1416?
- Brand: IKO
- Model / Order Number: BHAM1416
- Product Series: Needle Roller Bearings
- Bearing Type: Shell needle roller bearing
- Internal Structure: Cage type
- Design: Inch, caged, closed end

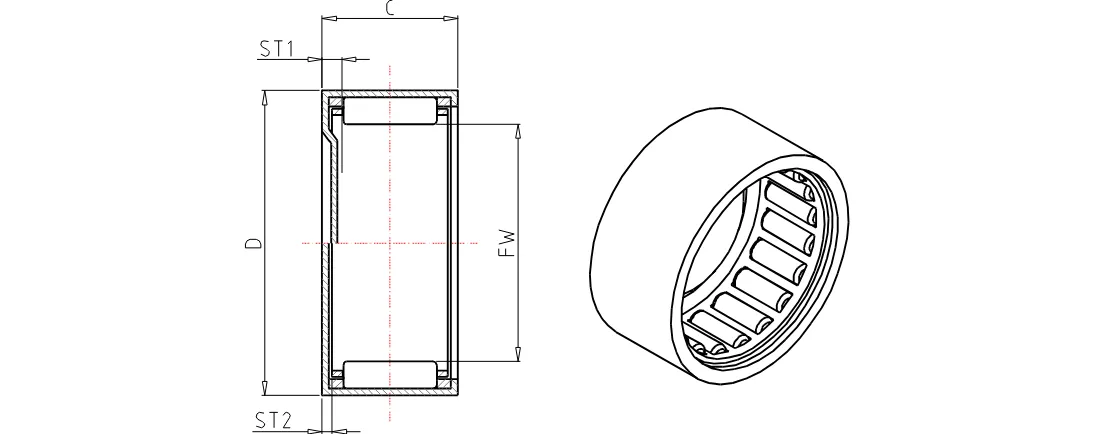

BHAM1416 Dimensions and Material Specification
The supplied product data lists the BHAM1416 bearing material as chromium molybdenum steel. Its stated dimensions are an outer diameter of 30.162 mm and a width of 25.40 mm. Additional supplied width fields list 3.4 mm and 0 mm; these values are included only as recorded product data.
What dimensions and mass are provided for the BHAM1416?
- Shaft Diameter: 22.225 mm
- Inscribed Circle Diameter: 22.225 mm
- Outer Diameter: 30.162 mm
- Width: 25.40 mm
- Mass: 42.0 g
BHAM1416 Load Ratings and Product Classification
The IKO BHAM1416 is classified as a needle roller bearing with a cage-type internal structure. The supplied data records a basic dynamic load rating of 23600 N and a basic static load rating of 36900 N. The bearing is also described as a closed-end, heavy-duty shell needle roller bearing.
What load rating information is available for the BHAM1416?
The product data provides the following load ratings for the BHAM1416:
- Basic dynamic load rating: 23600 N
- Basic static load rating: 36900 N
These ratings are stated from the supplied product data and should be reviewed against the intended bearing selection requirements.
