IKO BHAM1616
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End

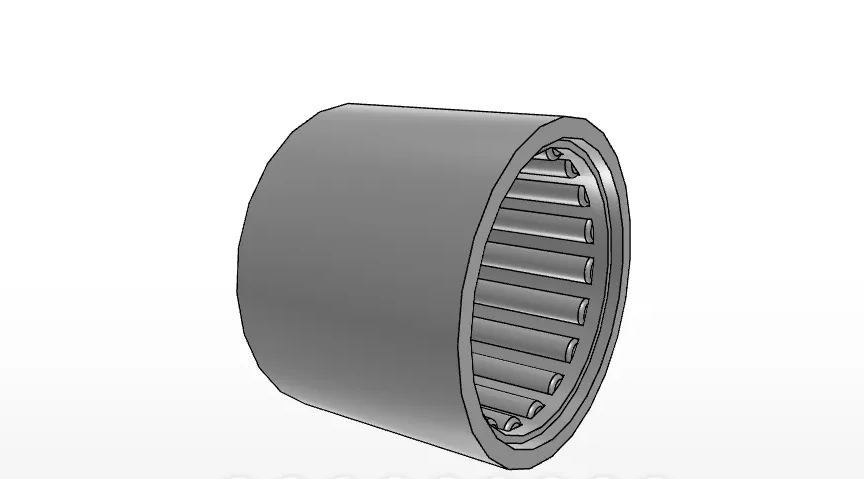

BHAM1616 Is an IKO Shell Needle Roller Bearing
The BHAM1616 is part of the IKO Needle Roller Bearings series and is listed as a shell needle roller bearing. The supplied product data identifies it as an inch, caged, closed-end design made from chromium molybdenum steel and described as heavy duty.
What bearing type and series does the BHAM1616 belong to?
The BHAM1616 belongs to the Needle Roller Bearings product series under the IKO brand. Its supplied bearing type is needle roller bearings, with a cage-type internal structure.
BHAM1616 Has Supplied Inch-Based Dimension Data

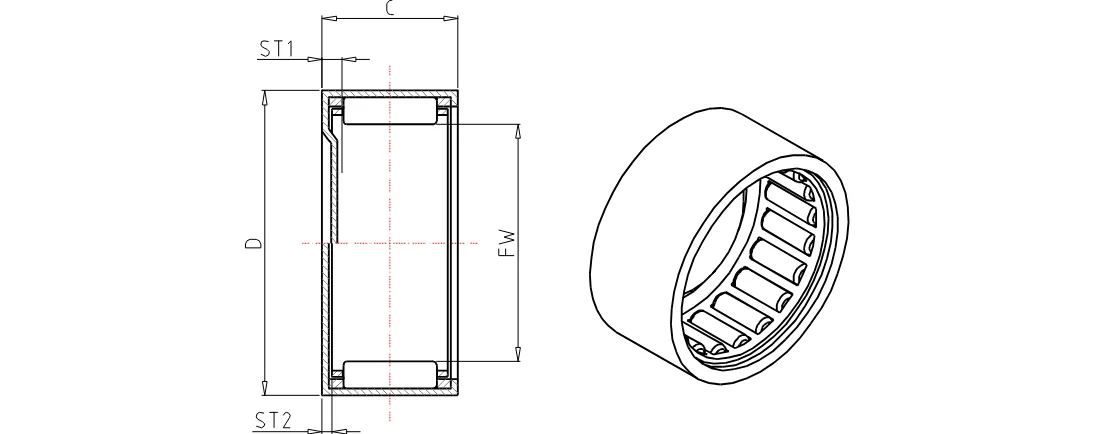

The recorded shaft diameter and inscribed circle diameter are both 25.400 mm. The bearing has an outer diameter of 33.338 mm and a width of 25.40 mm. The supplied right-side data also lists a maximum width value of 3.4 mm and a separate maximum width value of 0 mm; no clarification for these two fields is provided.
- Shaft diameter: 25.400 mm
- Inscribed circle diameter: 25.400 mm
- Outer diameter: 33.338 mm
- Width: 25.40 mm
- Mass: 48.0 g
What are the principal BHAM1616 dimensions?
The principal dimensions supplied for the BHAM1616 are a 25.400 mm shaft diameter, 25.400 mm inscribed circle diameter, 33.338 mm outer diameter, and 25.40 mm width.
BHAM1616 Includes Basic Load Rating and Material Details
The bearing material is listed as chromium molybdenum steel, and the internal structure is identified as cage type. The supplied basic dynamic load rating is 26400 N, while the basic static load rating is 44500 N. The product record lists order number BHAM1616 and a mass of 48.0 g.
- Material: Chromium molybdenum steel
- Structure: Cage type
- Basic dynamic load rating: 26400 N
- Basic static load rating: 44500 N
What load and construction information is provided for the BHAM1616?
The supplied data identifies a caged construction and chromium molybdenum steel bearing material. It also provides a basic dynamic load rating of 26400 N and a basic static load rating of 44500 N.
